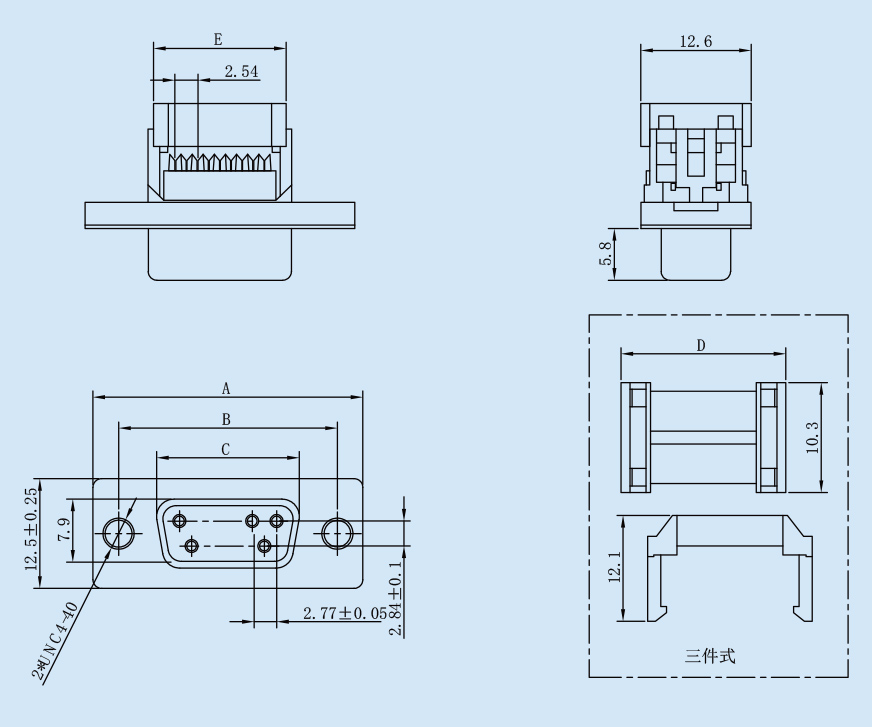

D-SUBIDC Compression Connector Female Head
D-SUBIDC Compression Connector Female Head
D-SUBIDC Compression Connector Female Head
Details



Technical Specifications

● Rated current: 1A

● Dielectric withstand voltage: 1000V AC

● Contact resistance: ≤ 20m Ω

● Insulation resistance: ≥ 1000M Ω

● Temperature range: -55 ℃ to+105 ℃

● Protection level: IP20

Terminal material: copper alloy, contact area: electroplated G/F; IDC area: Nickel plating

● Front shell material: Steel, nickel plating

● Rear shell material: steel, tin plated

● Insulator material: PBT+30% GF, (blue, black, white)
