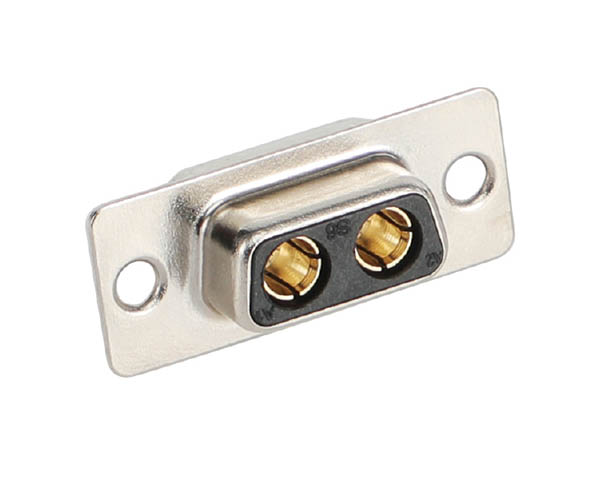

D-SUB 2W2 Female Head Solder Wire Optical Hole
D-SUB 2W2 Female Head Solder Wire Optical Hole
D-SUB 2W2 Female Head Solder Wire Optical Hole
Contact Us
Details



Technical Specifications

● Rated current: 10A、20A、30A、40A

● Dielectric withstand voltage: 1000V AC for 1 Minute

● Contact resistance: ≤ 2.7m Ω

● Insulation resistance: ≥ 5000M Ω

● Temperature range: -25 ℃ to+85 ℃

● Protection level: IP20

● ROHS compliant

● Contact material: Copper alloy, nickel plated with precious metals

● Front shell material: Steel, nickel plated

● Rear shell material: Steel, tin plated

● Insulator material: PBT+30% GF
