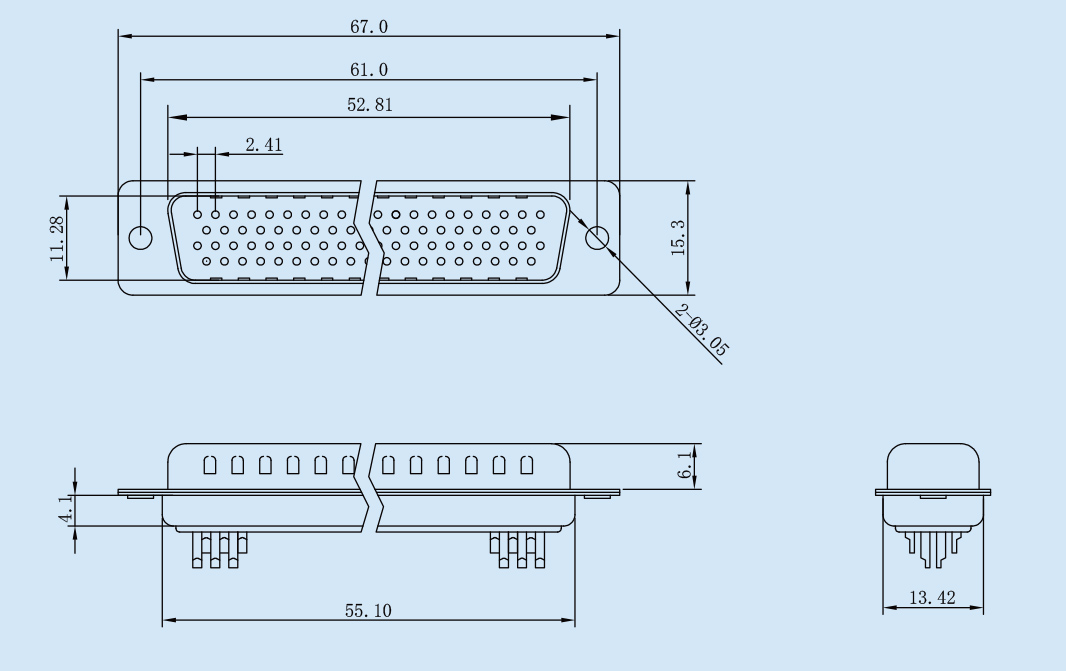

D-SUB 78P Male Header Pin Solder Terminal
D-SUB 78P Male Header Pin Solder Terminal
D-SUB 78P Male Header Pin Solder Terminal
Details



Technical Specifications

● Rated current: 5A

● Dielectric withstand voltage: 1000V AC

● Contact resistance: ≤ 35m Ω

● Insulation resistance: ≥ 1000M Ω

● Temperature range: -25 ℃ to+85 ℃

● Protection level: IP20

● Contact material: Copper alloy, nickel plated with precious metals

● Front shell material: Steel, nickel plated

● Rear shell material: Steel, tin plated

● Insulator material: PBT+30% GF (black, white, blue)
