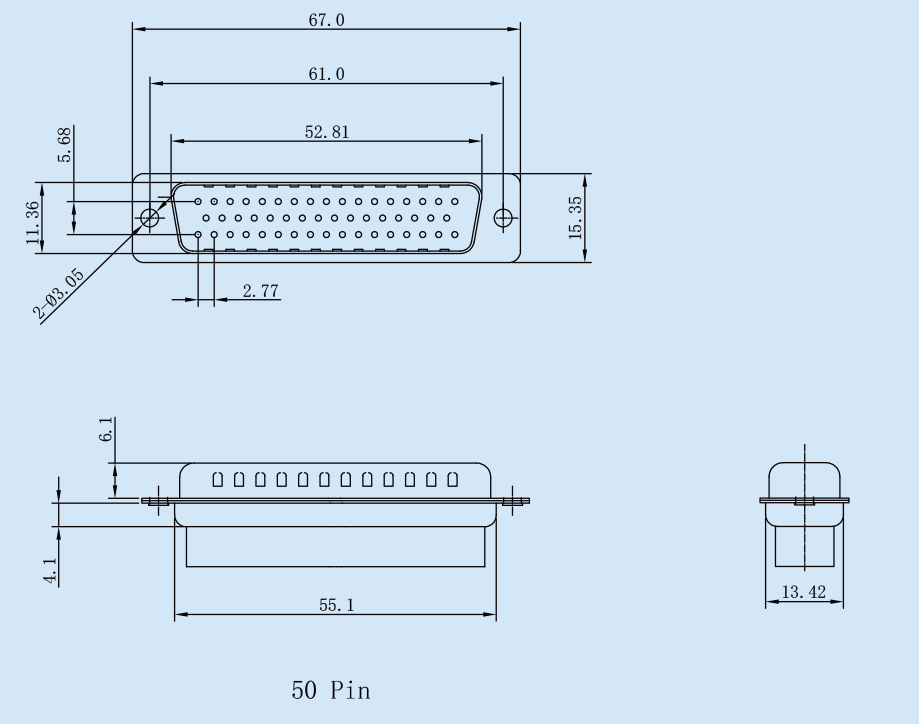

D-SUB 50P CRIMP Male Head
D-SUB 50P CRIMP Male Head
D-SUB 50P CRIMP Male Head
Contact Us
Details



Technical Specifications

● Rated current: 5A

● Dielectric withstand voltage: 1000V AC

● Contact resistance: ≤ 35m Ω

● Insulation resistance: ≥ 1000M Ω

● Temperature range: -25 ℃ to+85 ℃

● Protection level: IP20

● Contact material: copper alloy, contact area: electroplated G/F; Welding area: Sn

● Front shell material: steel, nickel plating

● Rear shell material: steel, tin plated

● Insulator material: PBT+30% GF (black, white, blue)
