Technical Specifications
● Rated current: 3A
● Dielectric withstand voltage: 1000V AC
● Contact resistance: ≤ 35m Ω
● Insulation resistance: ≥ 1000M Ω
● Temperature range: -55 ℃ to+105 ℃
● Protection level: IP20
● Contact material: copper alloy, contact area: electroplated G/F; Welding area: Sn
● Front shell material: steel, nickel plating
● Rear shell material: steel, tin plated
● Insulator material: PBT+30% GF (black, white, blue)

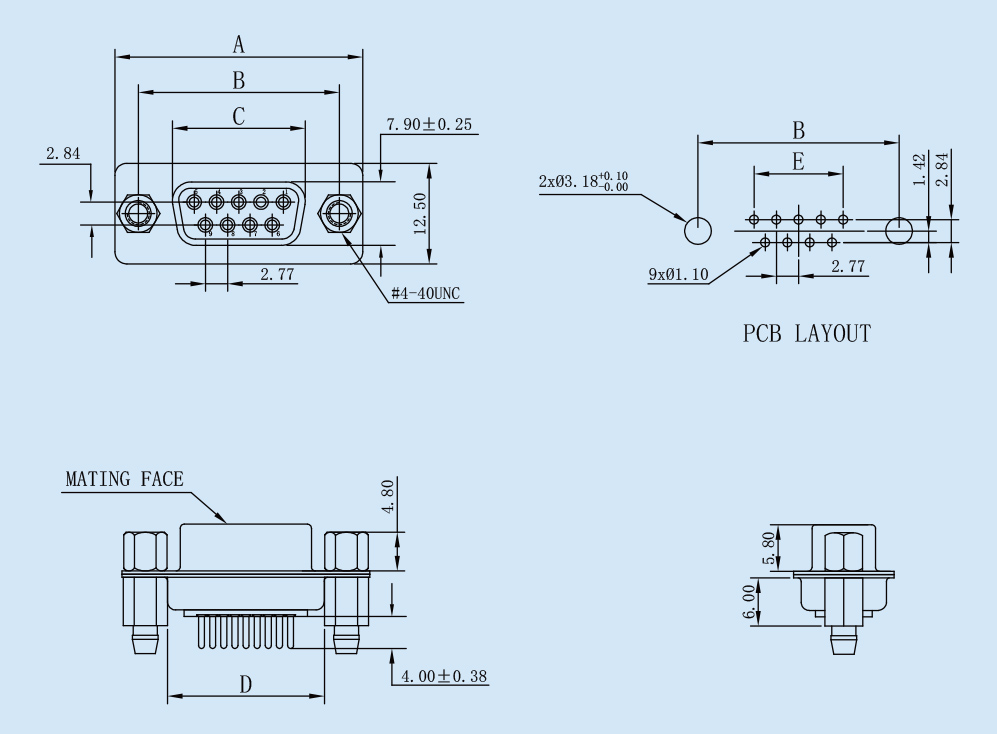

| Core CountSize | A | B | C | D |
09
| 30.8
| 25.0
| 16.3
| 11.1
|
| 15 | 39.1 | 33.3
| 24.7 | 19.4 |
| 25 | 53.0 | 47.0 | 38.4 | 33.2 |
| 37 | 69.3 | 63.5 | 54.9 | 49.9 |
