Technical Specifications
● Rated current: 3A
● Dielectric withstand voltage: 1000V AC
● Contact resistance: ≤ 35m Ω
● Insulation resistance: ≥ 1000M Ω
● Temperature range: -55 ℃ to+105 ℃
● Protection level: IP20
● Contact material: copper alloy, contact area: electroplated G/F; Welding area: Sn
● Front shell material: steel, nickel plating
● Rear shell material: steel, tin plated
● Insulator material: PBT+30% GF (black, white, blue)

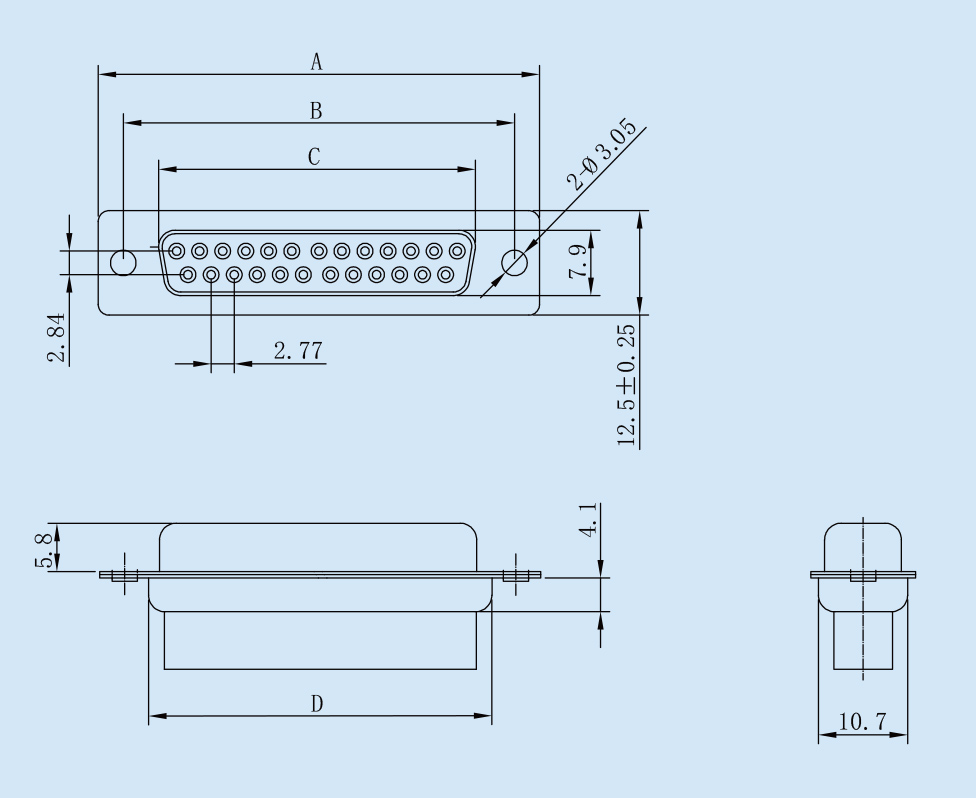

| Core CountSize | A±0.38 | B±0.25 | C±0.25 | D±0.25 |
09
| 30.81
| 24.99
| 16.33
| 19.2
|
| 15 | 39.20 | 33.30
| 24.70 | 27.7 |
| 25 | 53.05 | 47.04 | 38.40 | 41.1 |
| 37 | 69.40 | 63.50 | 54.80 | 57.3 |
