D-SUB CRIMP Male Head
D-SUB CRIMP Male Head
D-SUB CRIMP Male Head
Contact Us
Details


Technical Specifications

● Rated current: 3A

● Dielectric withstand voltage: 1000V AC

● Contact resistance: ≤ 35m Ω

● Insulation resistance: ≥ 1000M Ω

● Temperature range: -55 ℃ to+105 ℃

● Protection level: IP20

● Contact material: copper alloy, contact area: electroplated G/F; Welding area: Sn

● Front shell material: steel, nickel plating

● Rear shell material: steel, tin plated

● Insulator material: PBT+30% GF (black, white, blue)

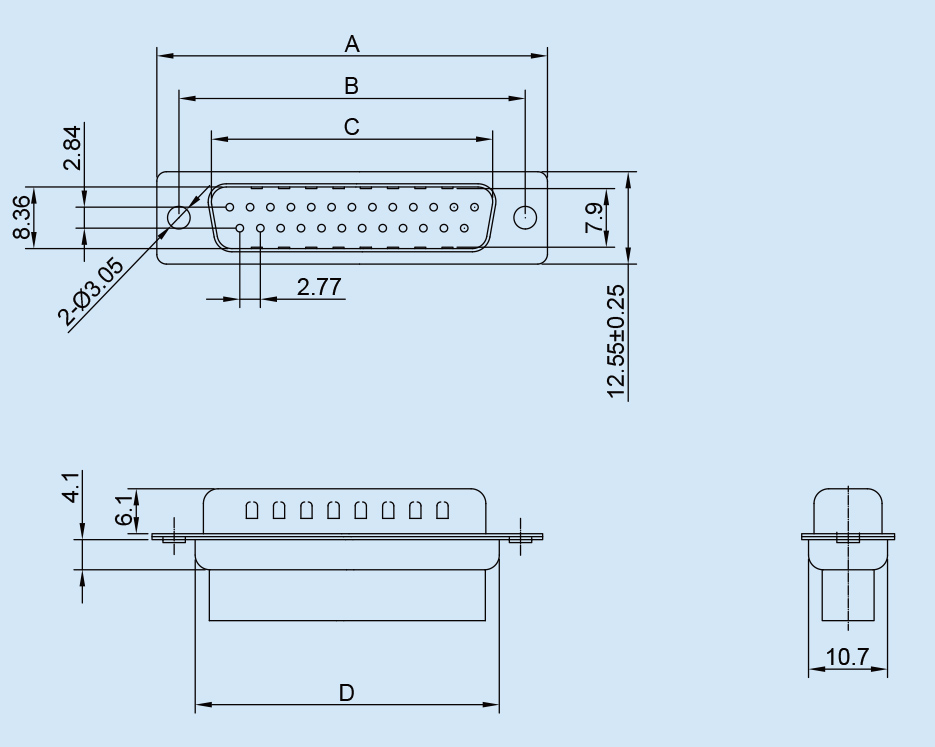

Core CountSizeA±0.38B±0.25C±0.25D±0.25
09
30.8
25.0
16.9
19.3
1539.133.3
25.227.5
2553.047.0

39.0

41.3
3769.363.555.457.7
