D-SUB High-density Wire Bonding Female Head
D-SUB High-density Wire Bonding Female Head
D-SUB High-density Wire Bonding Female Head
Contact Us
Details


Technical Specifications

● Rated current: 3A

● Dielectric withstand voltage: 1000V AC

● Contact resistance: ≤ 35m Ω

● Insulation resistance: ≥ 1000M Ω

● Temperature range: -55 ℃ to+105 ℃

● Protection level: IP20

● Contact material: copper alloy, contact area: electroplated G/F; Welding area: Sn

● Front shell material: steel, nickel plating

● Rear shell material: steel, tin plated

● Insulator material: PBT+30% GF (black, white, blue)

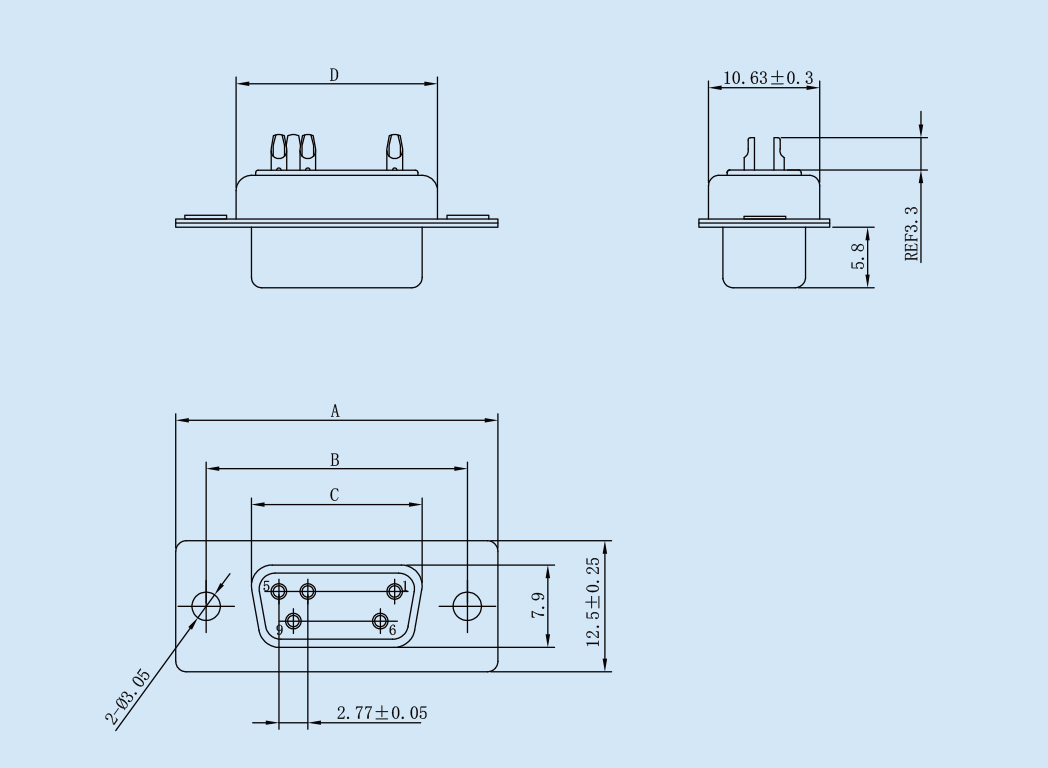

Core CountSizeA±0.38B±0.25C±0.25D±0.25
15
30.8
25.0
16.3
19.3
2639.133.3
24.627.5
4453.047.038.341.3
6269.363.554.857.7
