◆ This series of products is designed for plug insertion and socket insertion, which is exactly opposite to J30JR-TJ/ZK. The wire numbers (hole positions) are also opposite to J30JR-TJ/ZK;

◆ This series of products includes crimping, welding, direct insertion of printed boards, bending insertion of printed boards, and ordinary basic products in appearance;

◆ Users should select the locking component according to the installation method of the device and indicate it in the order model. For specific instructions, please refer to the "Attachment Instructions";

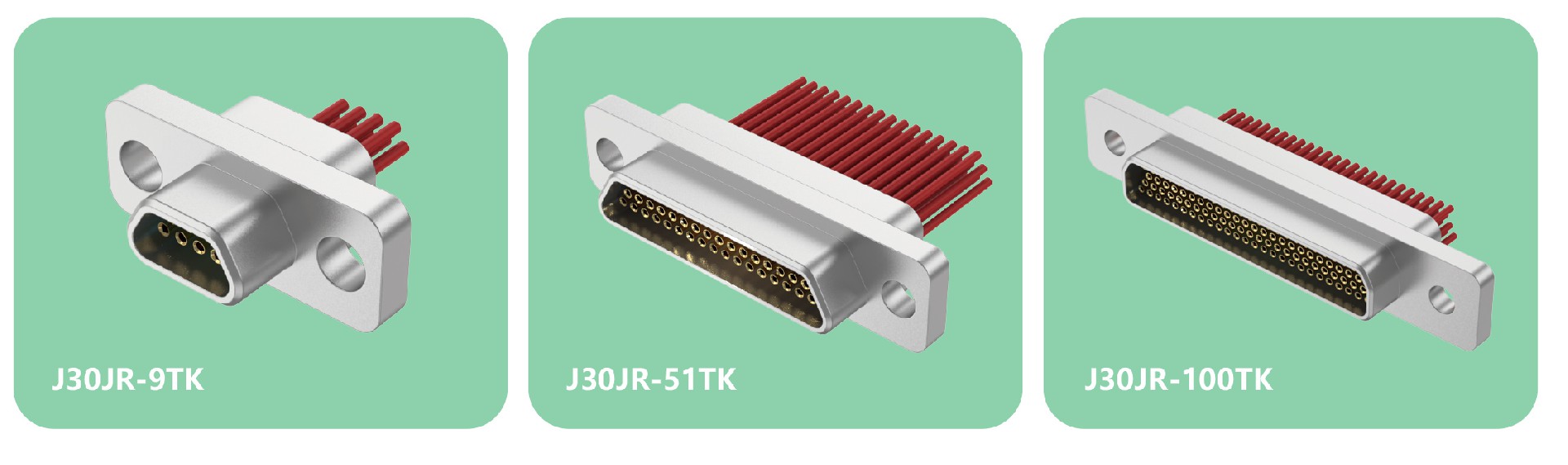

◆ Plug

◆ J30JR-9, 15, 21, 25, 31, 37, 51, 66, 74, 100, 144TK

The product display is as follows:

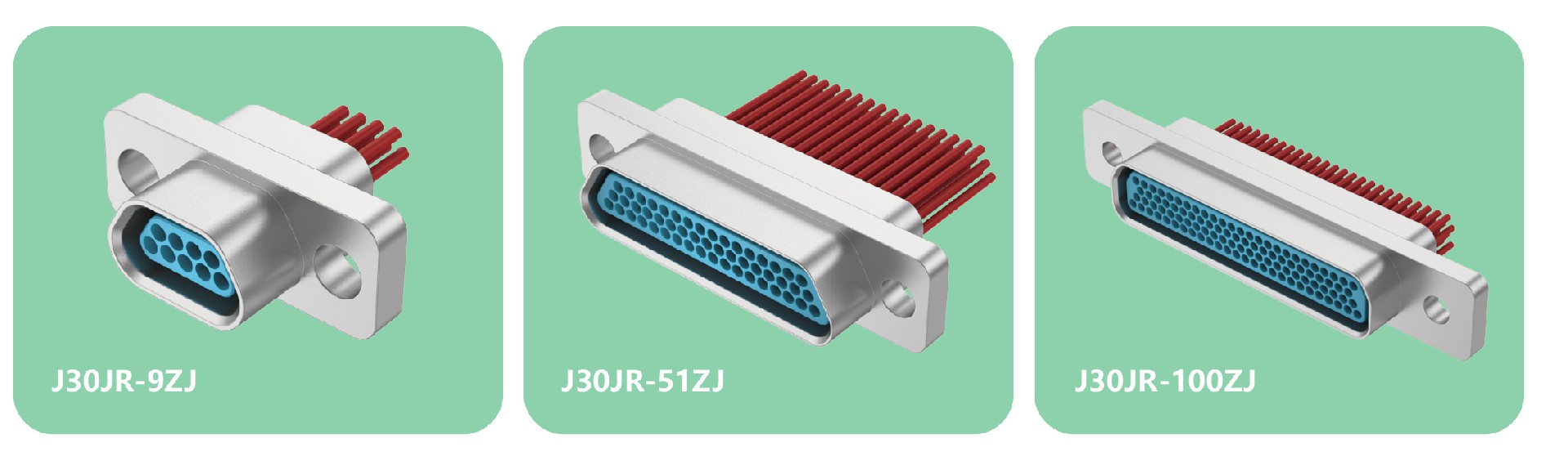

◆ Socket

◆ J30JR-9, 15, 21, 25, 31, 37, 51, 66, 74, 100, 144ZJ

The product display is as follows:
