◆ This is a J30J product with higher sealing indicators (note that only the socket end is sealed), using a glass sintered structure, and is used in conjunction with ordinary J30J series plugs and locking components. Technical characteristics: Insulation resistance: ≥ 1000M Ω

◆ Dielectric withstand voltage: 600 Vr.m.s

Contact resistance: ≤ 30 m Ω

Air leakage: ≤ 1 × 10-3Pa. cm ³/s

Other technical indicators are exactly the same as J30J

◆ This series of sealed electrical connectors is mainly used for pre board installation, and other installation methods require customization.

◆ Socket

◆ J30JM1-9, 15, 21, 25, 31, 37, 51ZKS

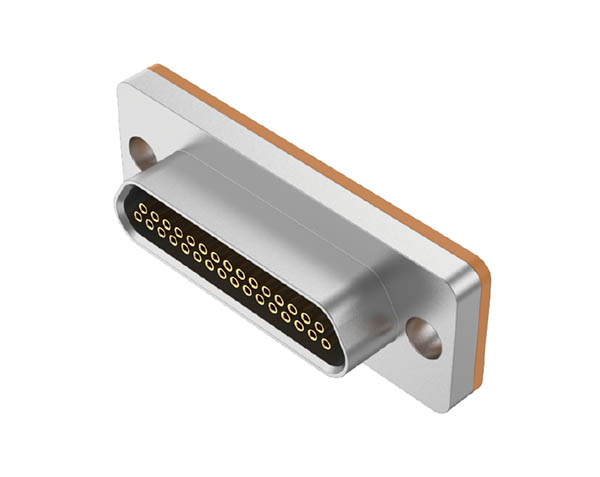

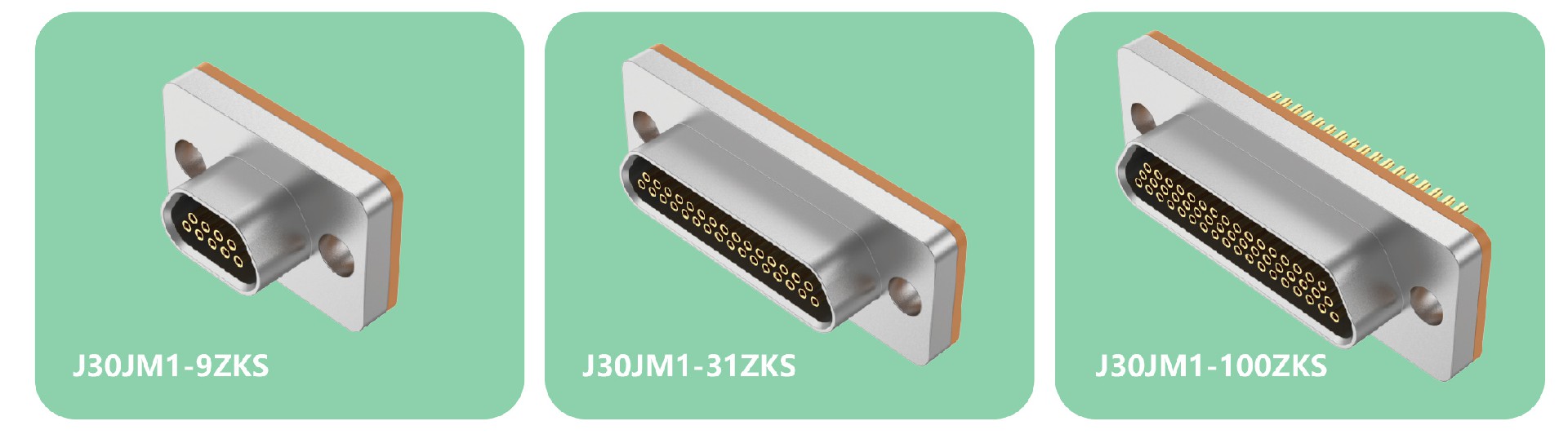

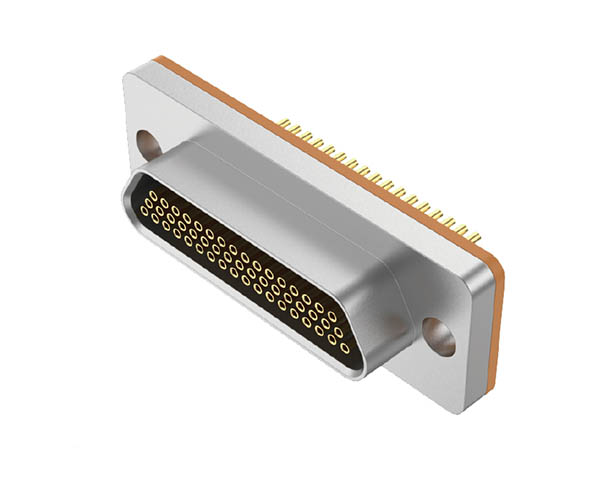

The product display is as follows:

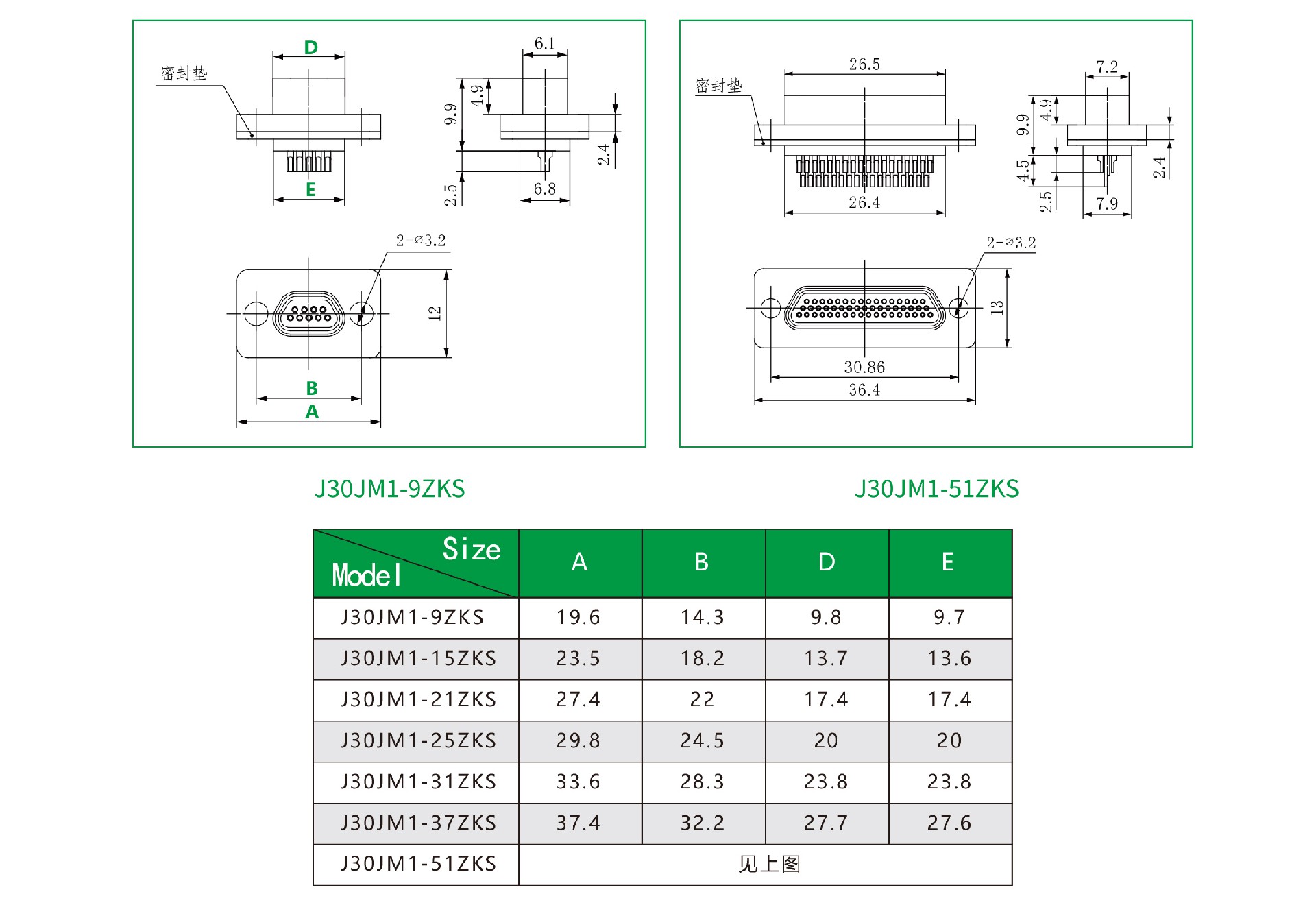

The external dimensions of the product are as follows: (Note: The thickness of the sealing gasket installed on the product flange is 1mm)
