The J30J sealed welded product has the same performance indicators as the J30JM-ZK basic crimping type, except for insulation resistance (≥ 2000M Ω) which is different from the J30J ordinary type. Other performance indicators are exactly the same as the J30J, and an air leakage rate indicator is added, which is 5.0 × 10-2Pa · cm ³/s.
◆ Socket
◆ J30JM-9, 15, 21, 25, 31, 37, 51, 66, 74, 100ZKS

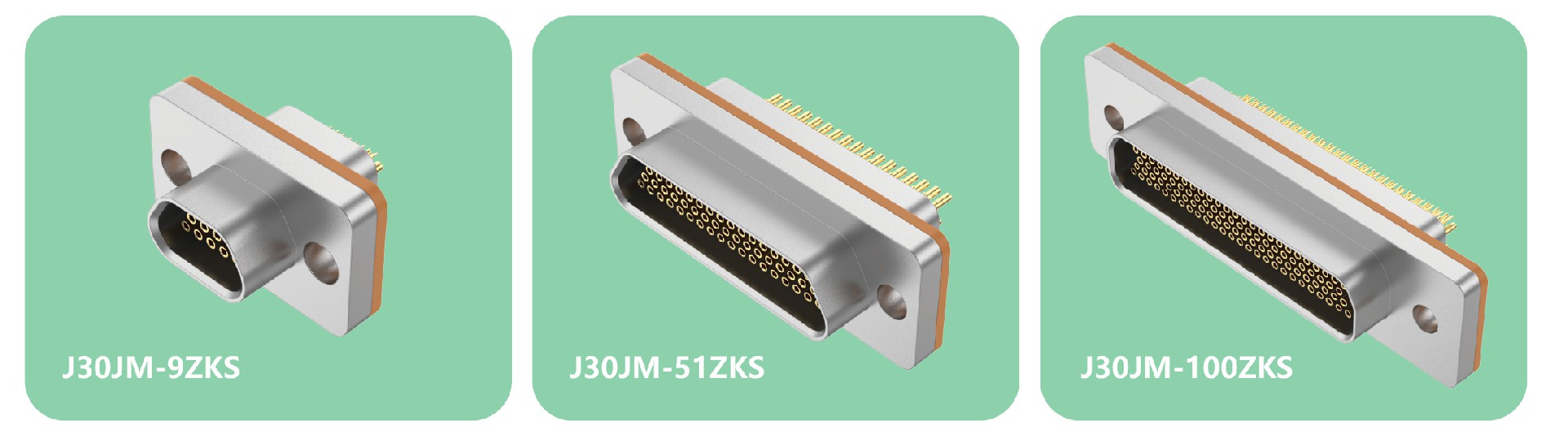

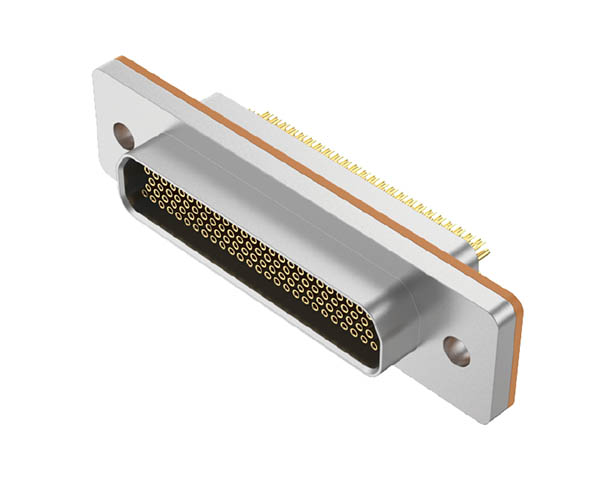

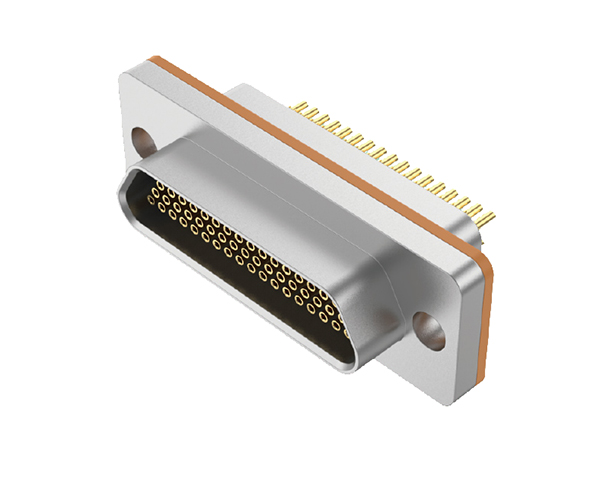

The product display is as follows:

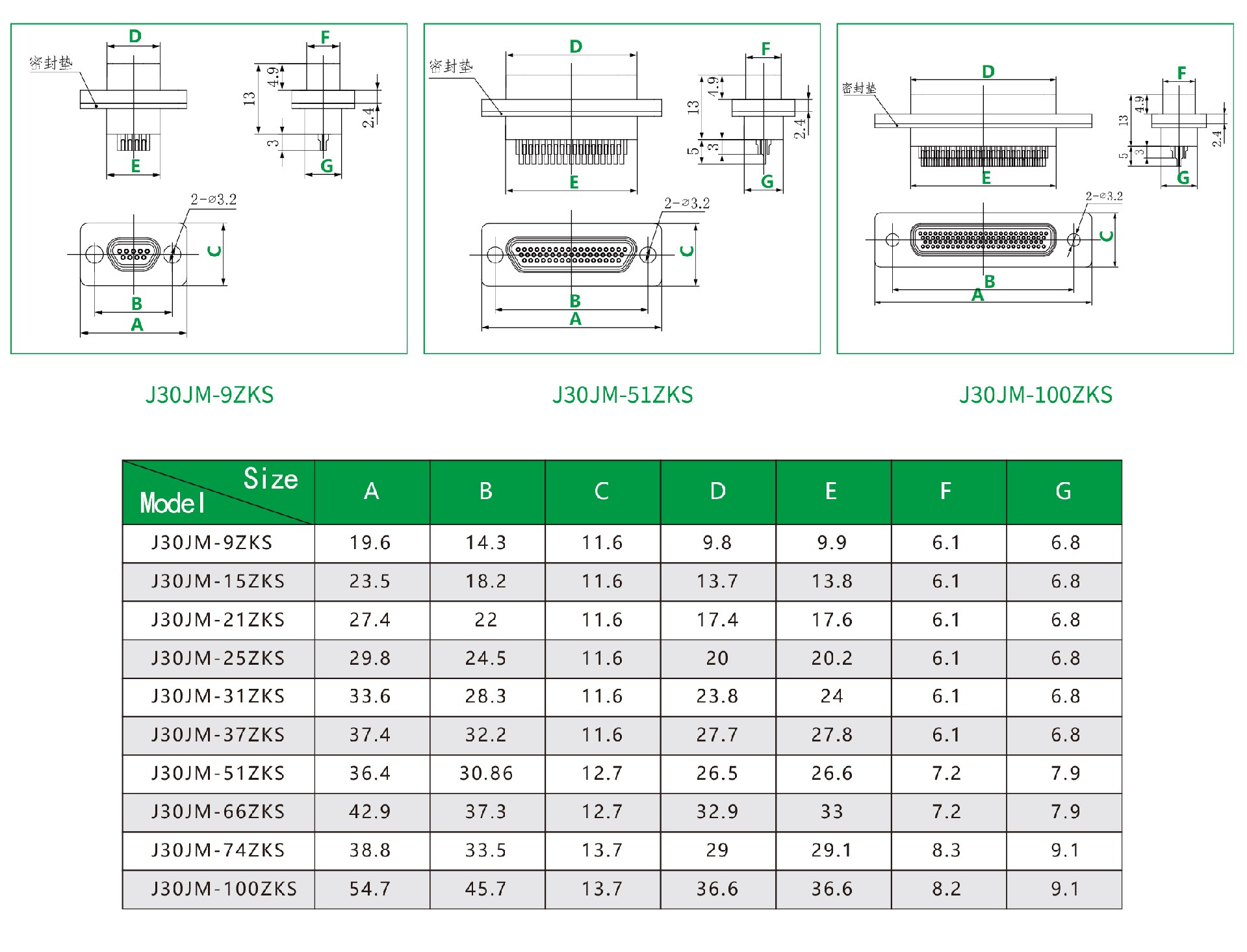

The external dimensions of the product are as follows: (Note: The thickness of the sealing gasket installed on the product flange is 1mm)
