J30JA Plug in Printed Circuit Board Expansion Type \ J30JA-ZKW
J30JA Plug in Printed Circuit Board Expansion Type \ J30JA-ZKW
J30JA Plug in Printed Circuit Board Expansion Type \ J30JA-ZKW
The tail end of the contact piece is connected to the printed board in a bent plug-in manner, with a grid size of 2.54 × 2.54 (column × row)
Contact Us
Details

The tail end of the contact piece is connected to the printed board in a bent plug-in manner, with a grid size of 2.54 × 2.54 (column × row)

◆ Socket

◆ J30JA-9, 15, 21, 25, 31, 37, 51, 66, 74, 100, 144ZKW

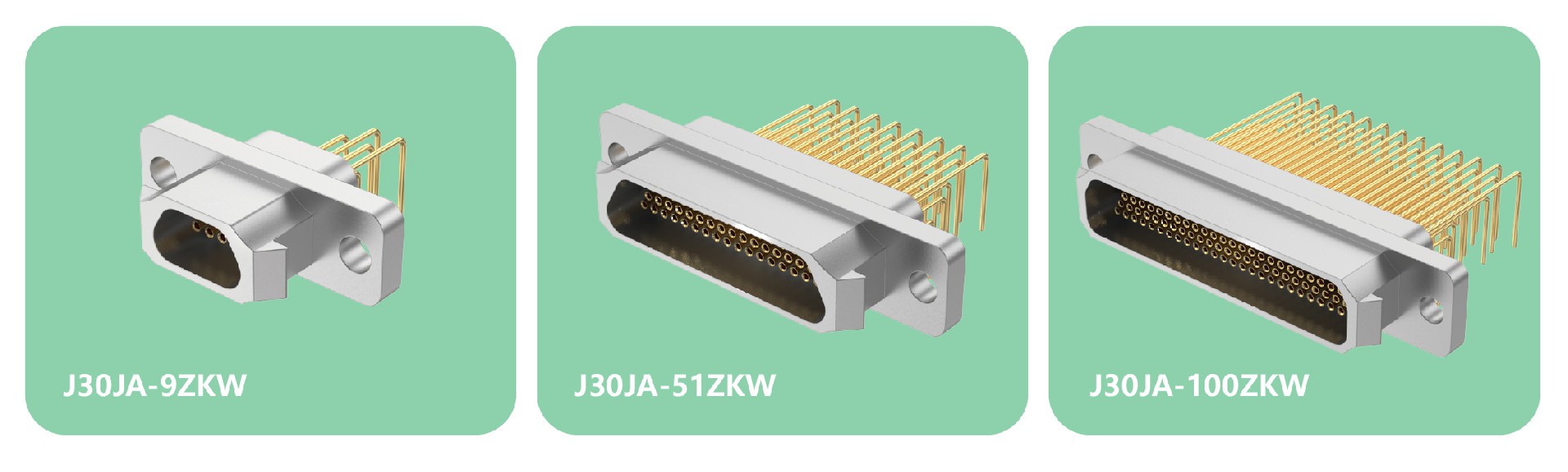

The product display is as follows:

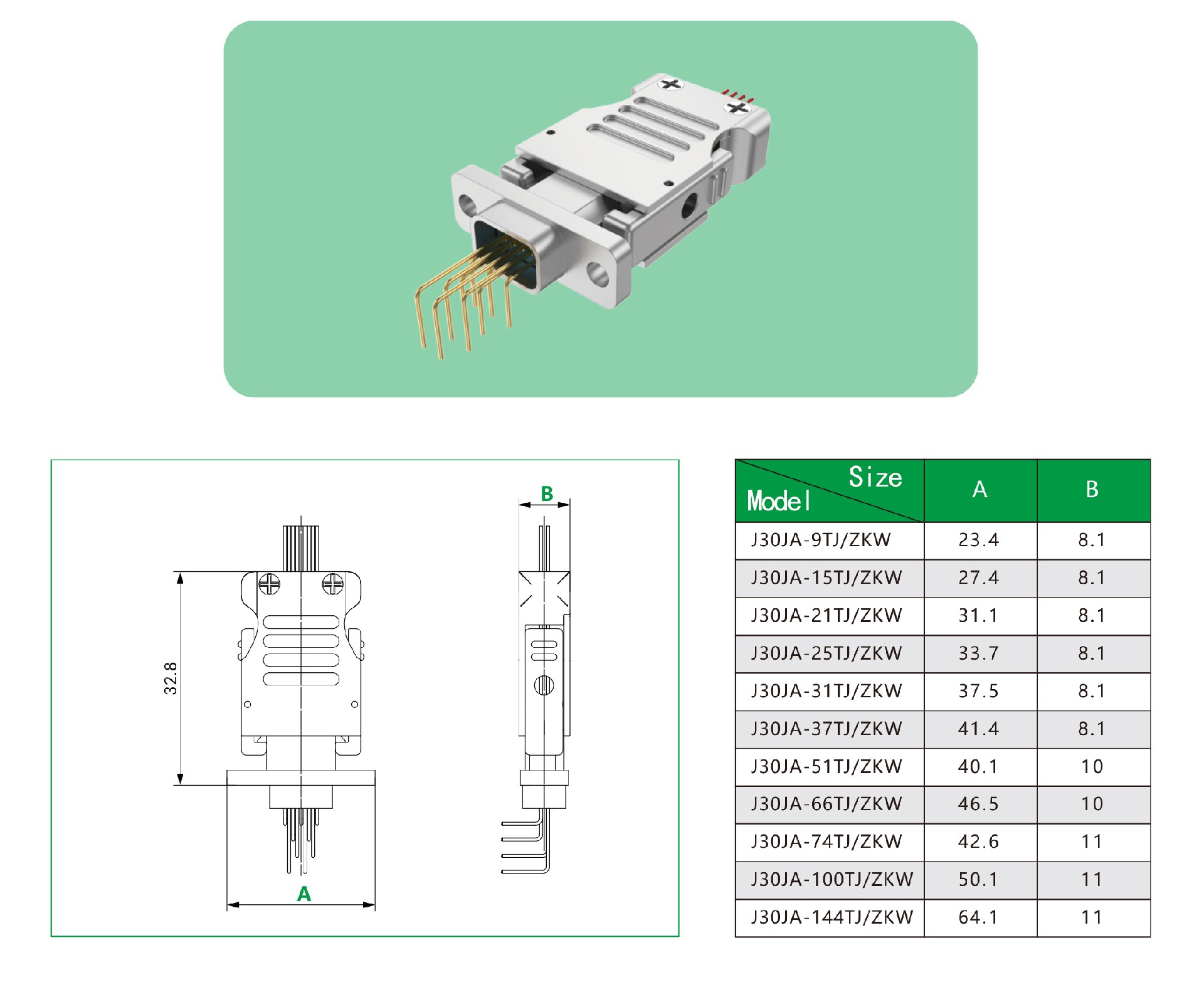

The display diagram and external dimensions of the plug and socket after docking are as follows:

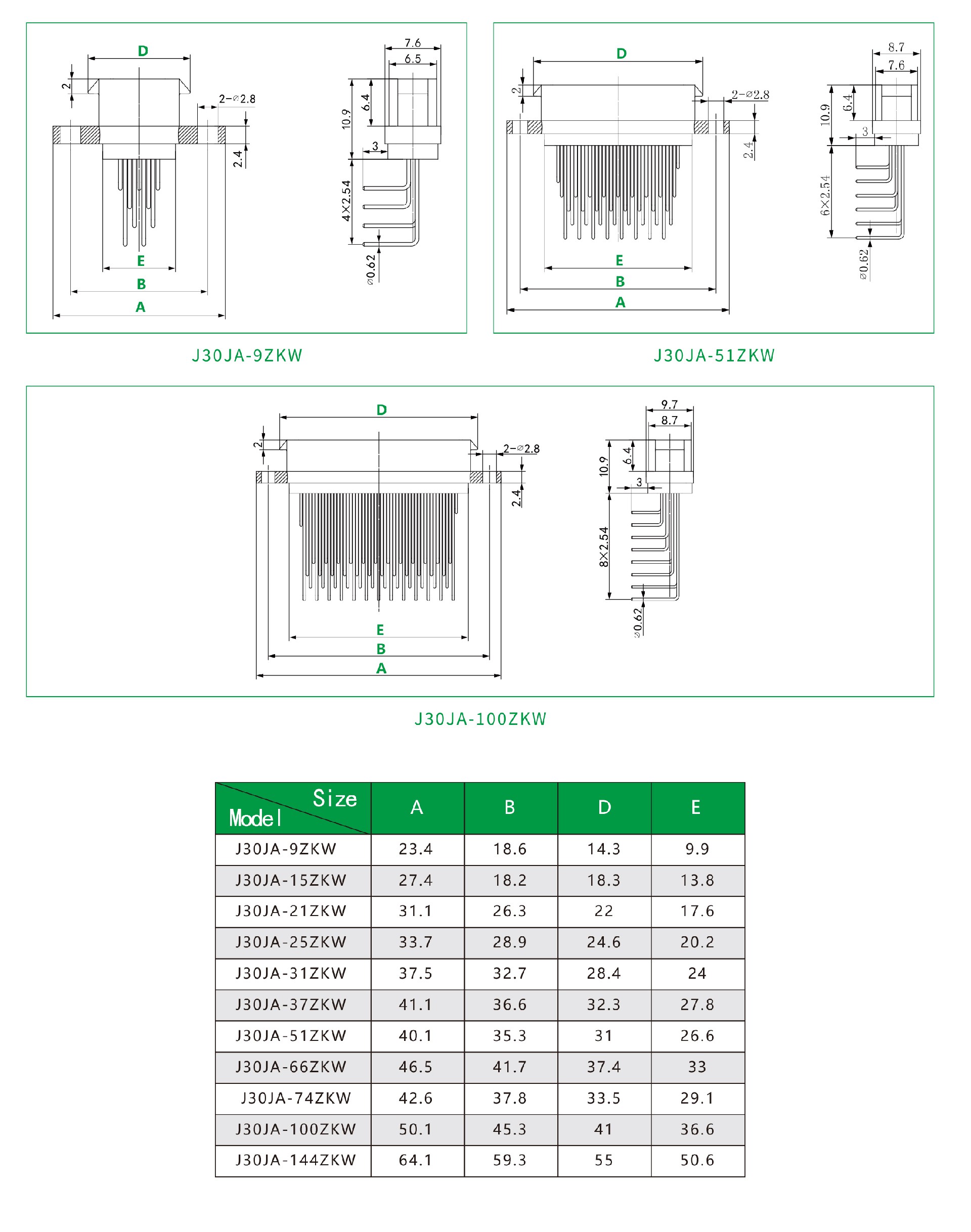

The product's external dimensions are shown below:
