J30J Welding Basic Types \ J30J-TJS&J30J-ZKS
J30J Welding Basic Types \ J30J-TJS&J30J-ZKS
J30J Welding Basic Types \ J30J-TJS&J30J-ZKS
A basic welded product with a tail end spacing of 1.27 × 1.1 (column × row).
Contact Us
Details

◆ A basic welded product with a tail end spacing of 1.27 × 1.1 (column × row).


◆ Plug

◆ J30J-9, 15, 21, 25, 31, 37, 51, 66, 74, 100, 144TJS

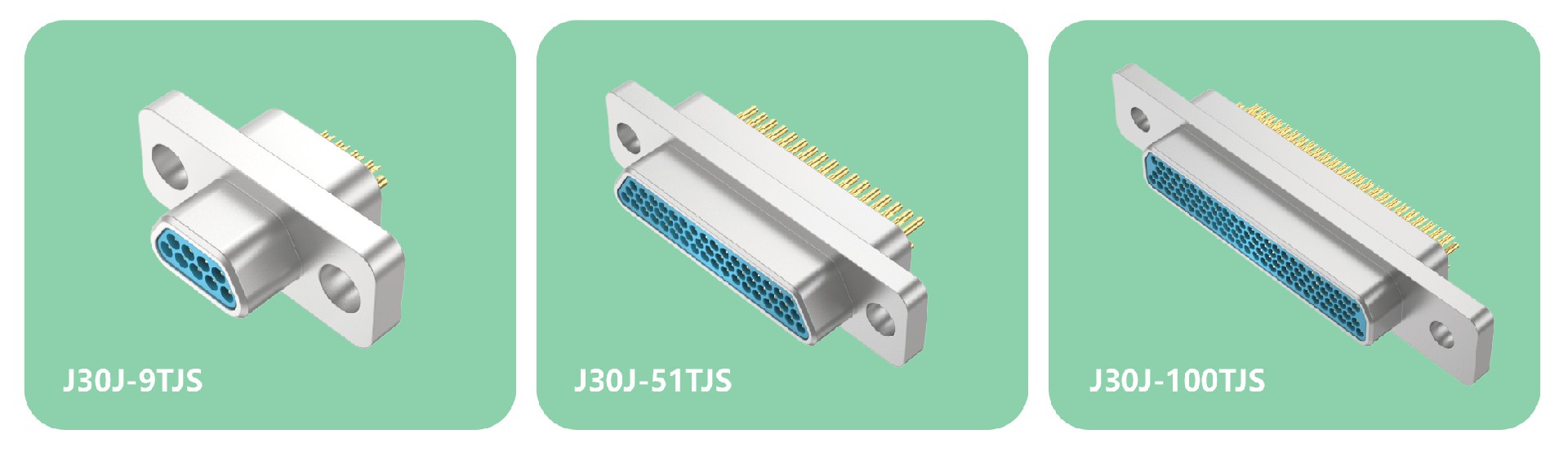

The product display is as follows:


◆ Socket

◆ J30J-9, 15, 21, 25, 31, 37, 51, 66, 74, 100, 144ZKS

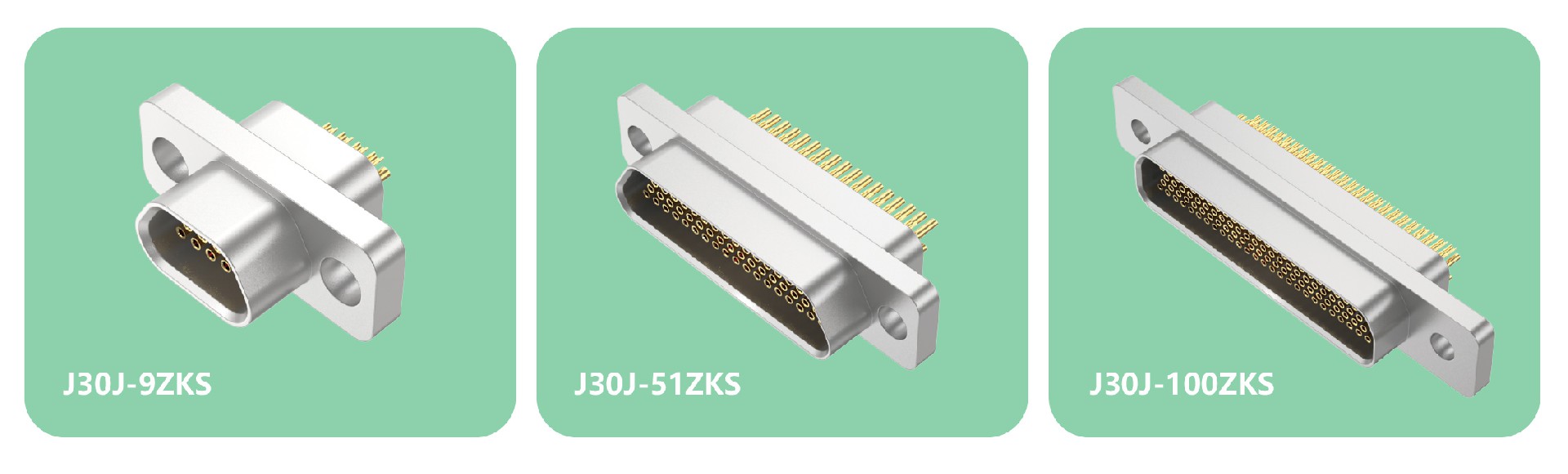

The product display is as follows:

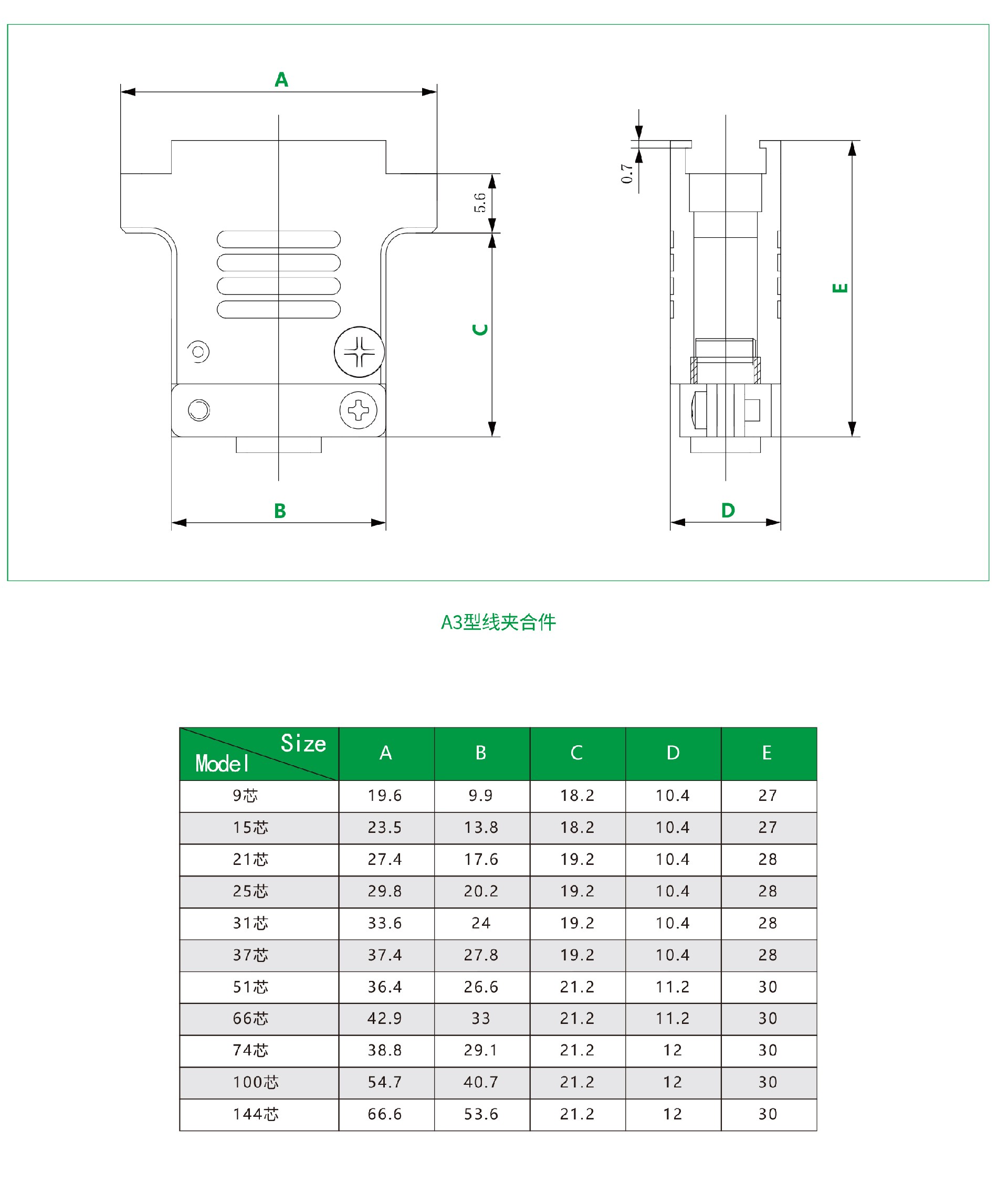

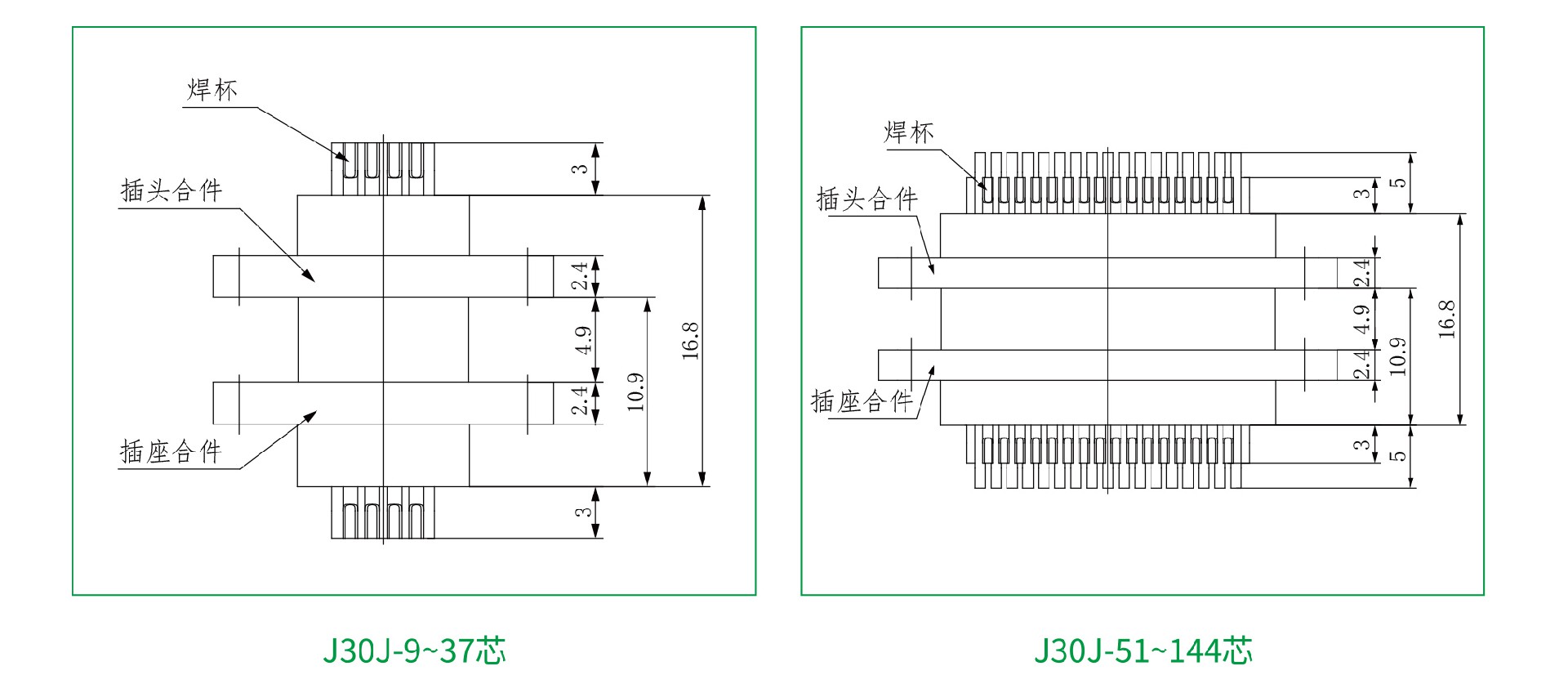

The external diagram of the plug and socket after docking is as follows: (not included in the size of the A3 type wire clamp)

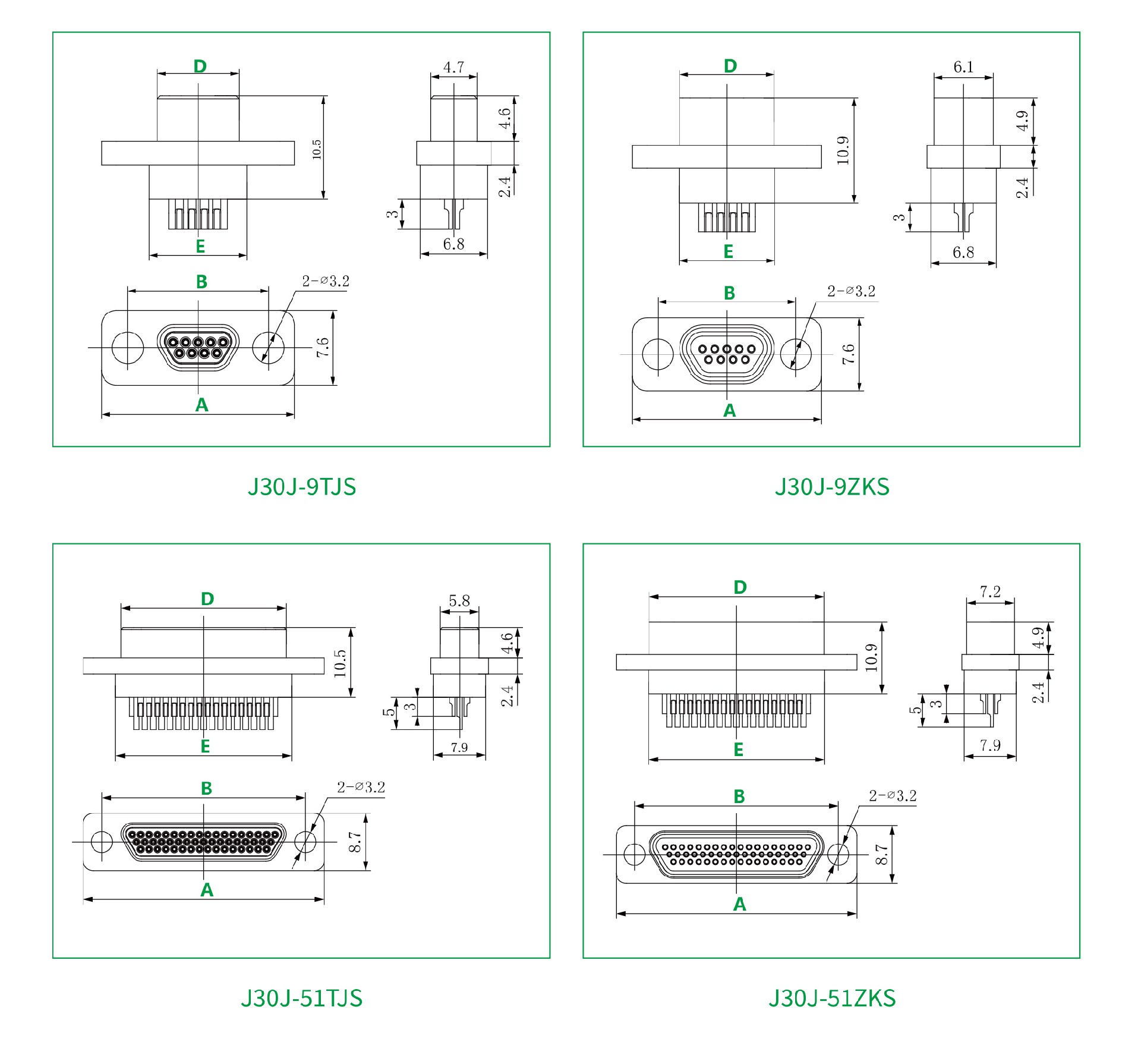

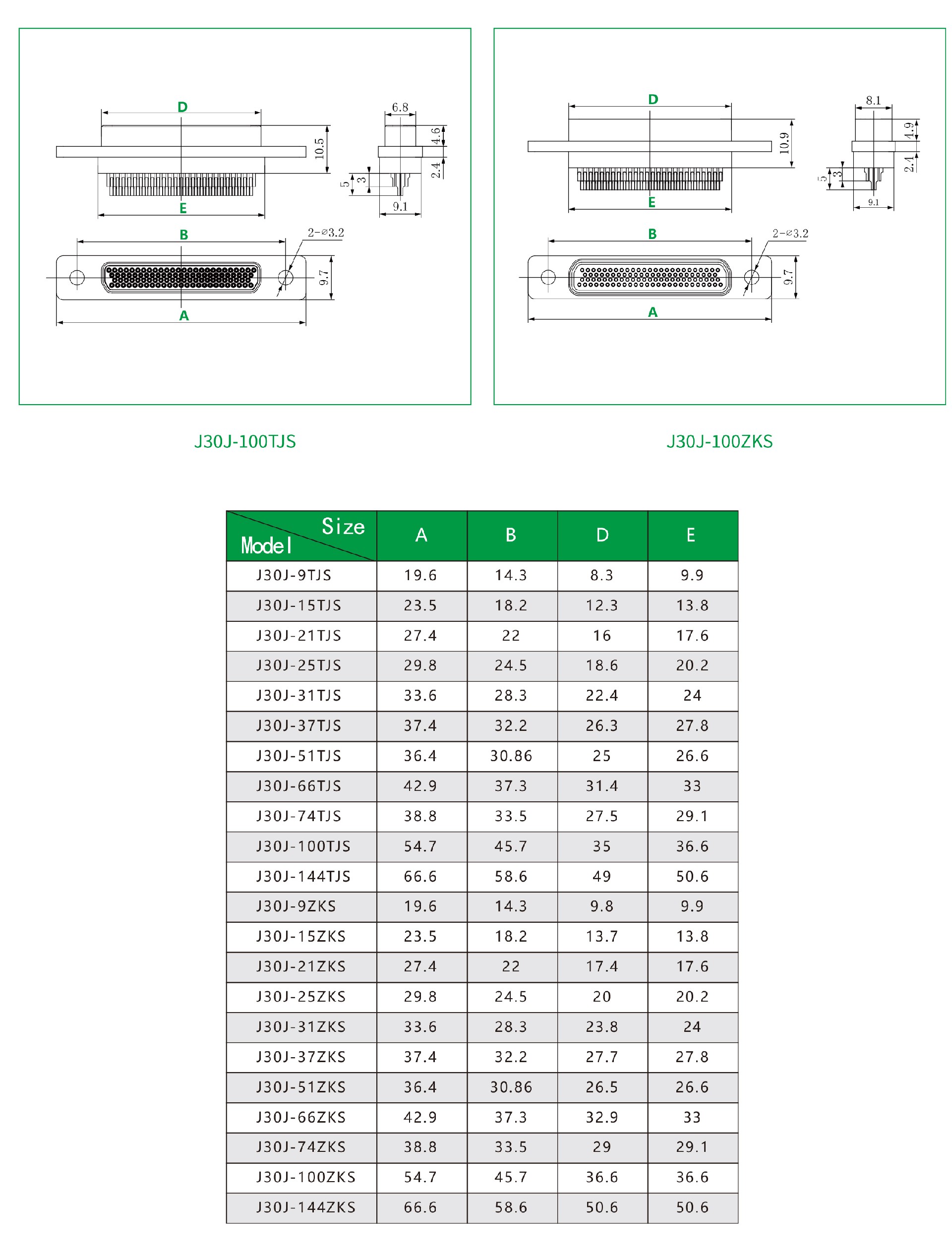

The product's external dimensions are shown below:
