J30J Direct Insertion Printed Circuit Board Expansion Type/J30J-TJN3, J30J-TJN4, J30J-TJN8, J30J-TJN12
J30J Direct Insertion Printed Circuit Board Expansion Type/J30J-TJN3, J30J-TJN4, J30J-TJN8, J30J-TJN12
J30J Direct Insertion Printed Circuit Board Expansion Type/J30J-TJN3, J30J-TJN4, J30J-TJN8, J30J-TJN12
J30J-9、15、21、25、31、37、51、66、74、100、144TJN
Details

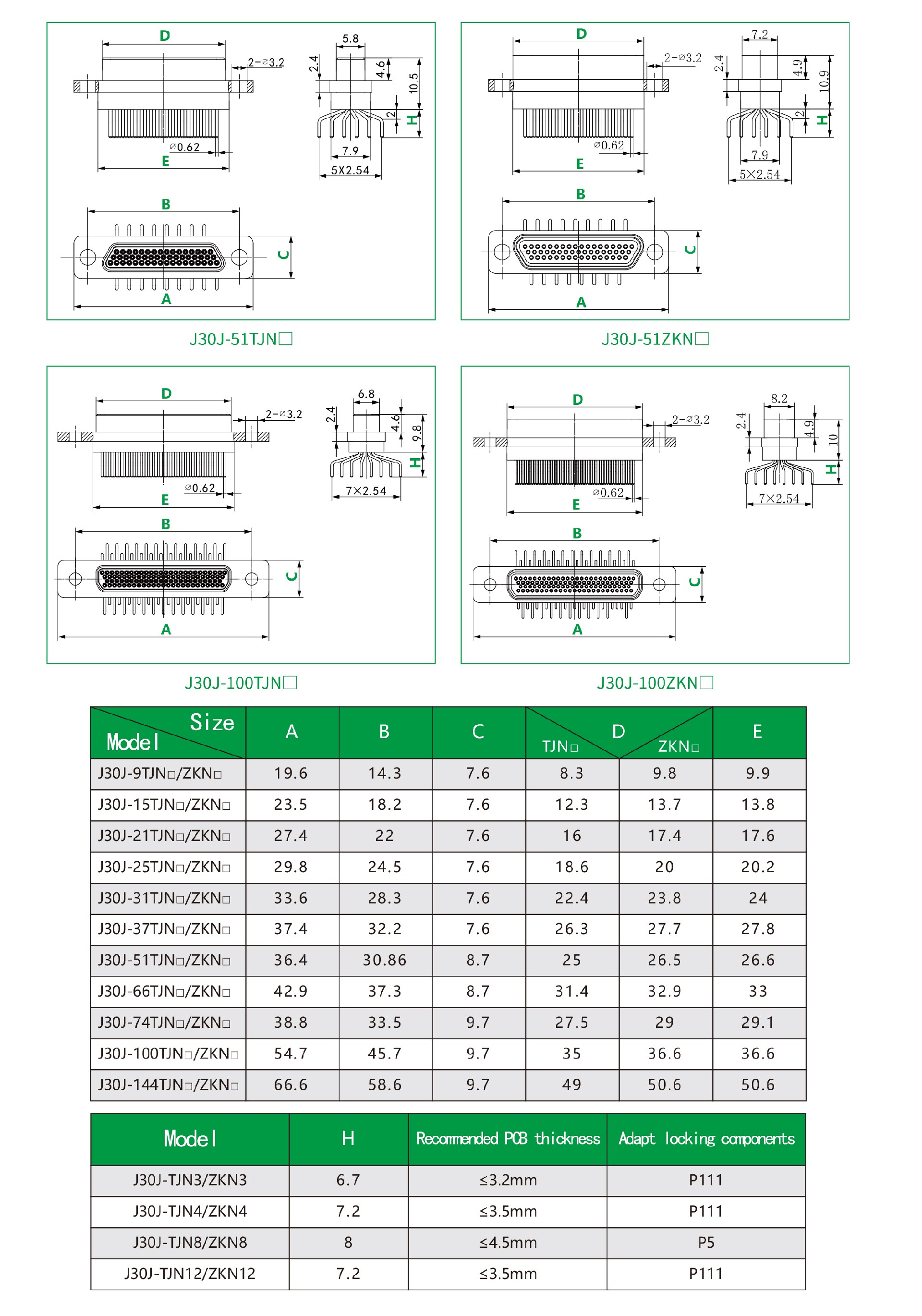

◆ The length of the pin at the end of the plug assembly J30J - □ TJN3 product has been extended to 6.7 on the basis of J30J - □ TJN

◆ The length of the pin at the end of the plug assembly J30J - □ TJN4 product has been extended to 7.2 on the basis of J30J - □ TJN

◆ The length of the pin at the end of the plug assembly J30J - □ TJN8 product has been extended to 8 on the basis of J30J - □ TJN

◆ The length of the pin at the end of the plug assembly J30J - □ TJN12 product has been extended to 7.2 on the basis of J30J - □ TJN

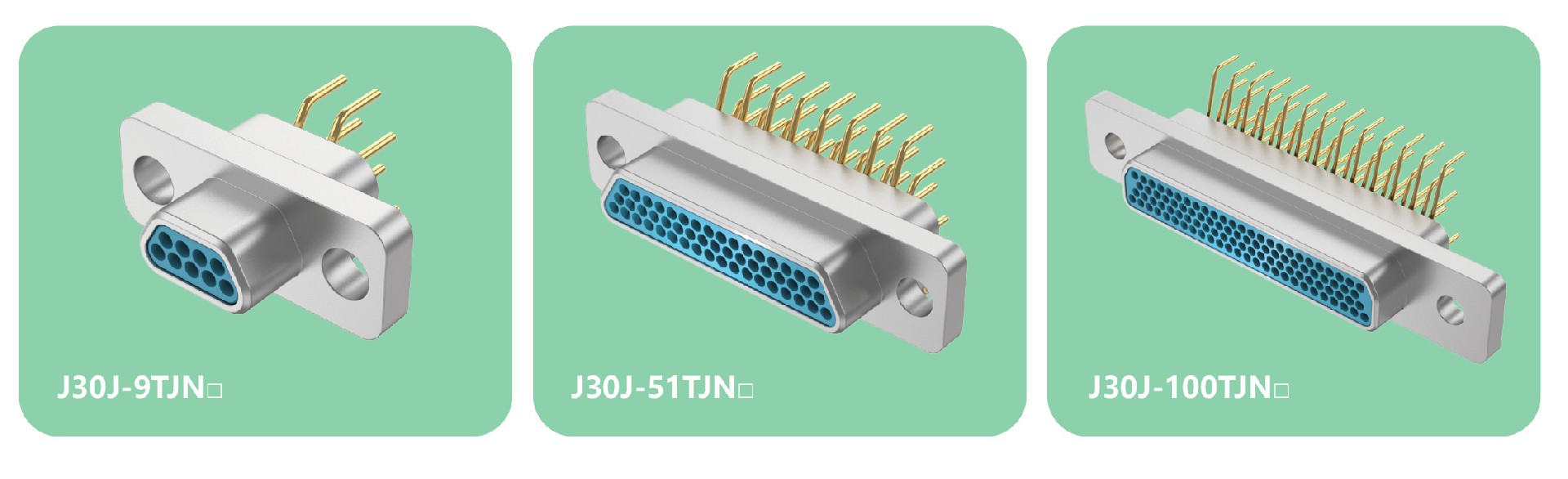

◆ Plug

◆ J30J-9, 15, 21, 25, 31, 37, 51, 66, 74, 100, 144TJN □

The product display is as follows:

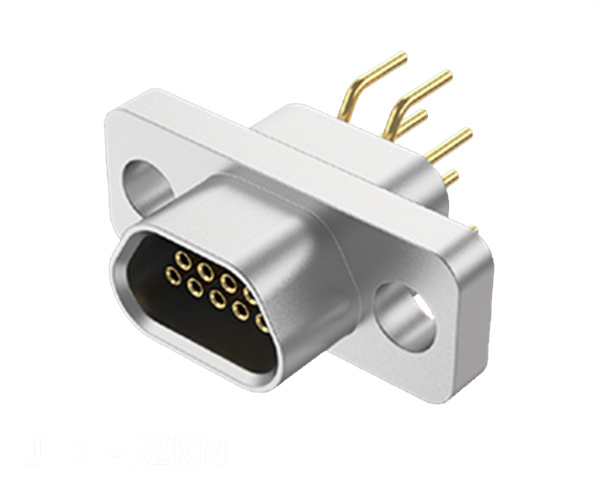

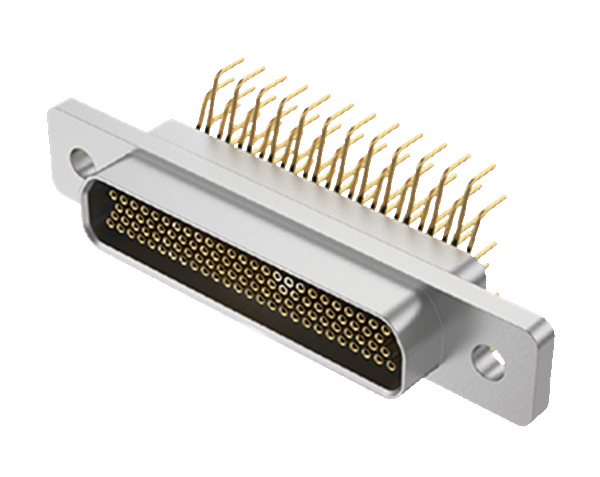

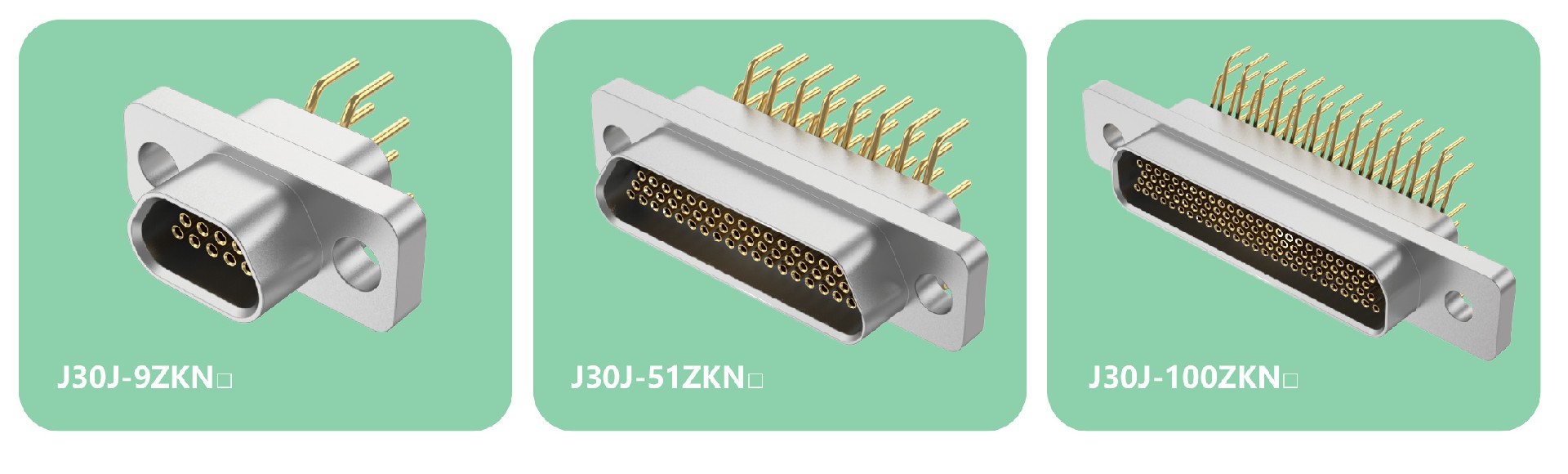

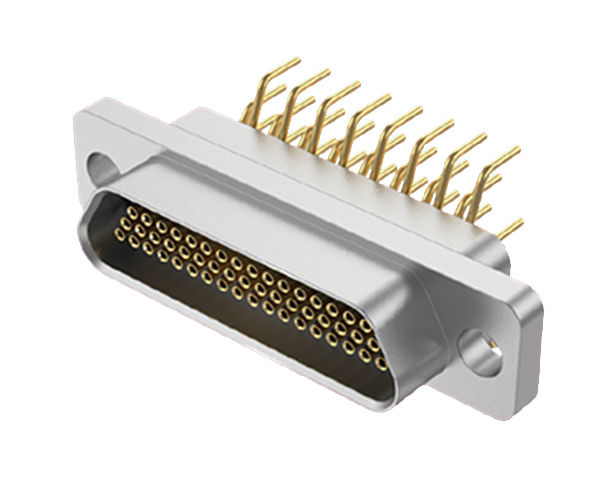

◆ Socket

◆ J30J-9, 15, 21, 25, 31, 37, 51, 66, 74, 100, 144ZKN □

The product display is as follows:
