J30J-TJ-C1 & J30J-ZK-C1
◆ In the original J30J-TJ/ZK-C tail wire crimping product, a bent wire clamp is added, and the wire harness is covered with a metal anti wave sleeve.
◆ There is also an outlet on the same side. The length of the plug and socket is only 160.5-19mm, which is suitable for situations with limited space and shielding requirements.
◆ The pressure plate and the shell are fixed with screws

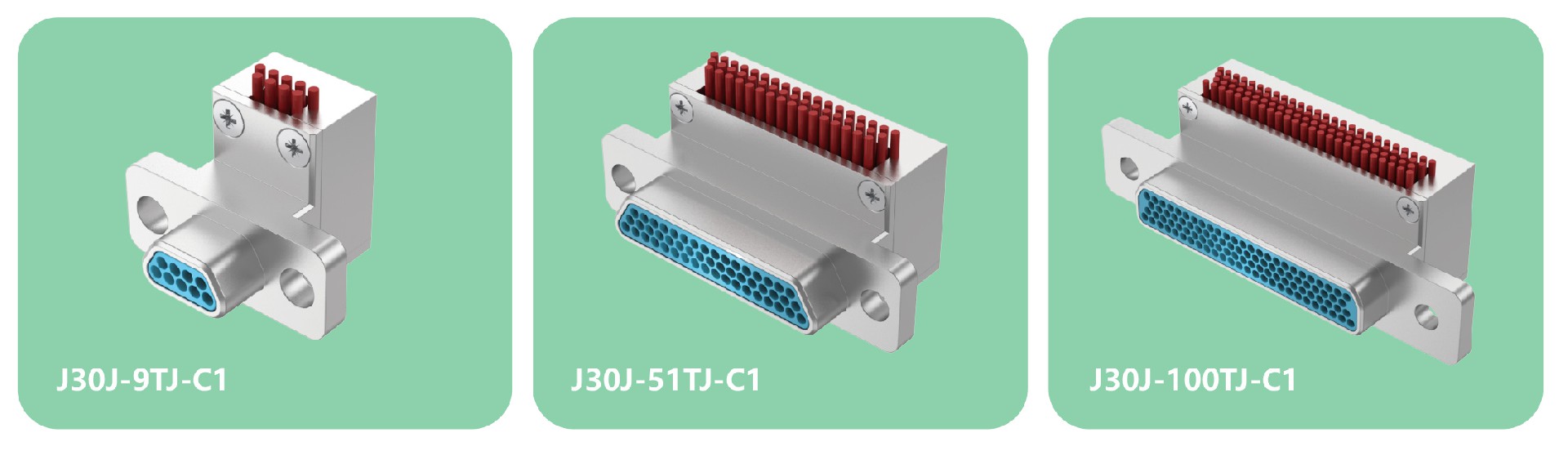

◆ Plug
◆ J30J-9, 15, 21, 25, 31, 37, 51, 66, 74, 100, 144TJ-C1
The product display is as follows:

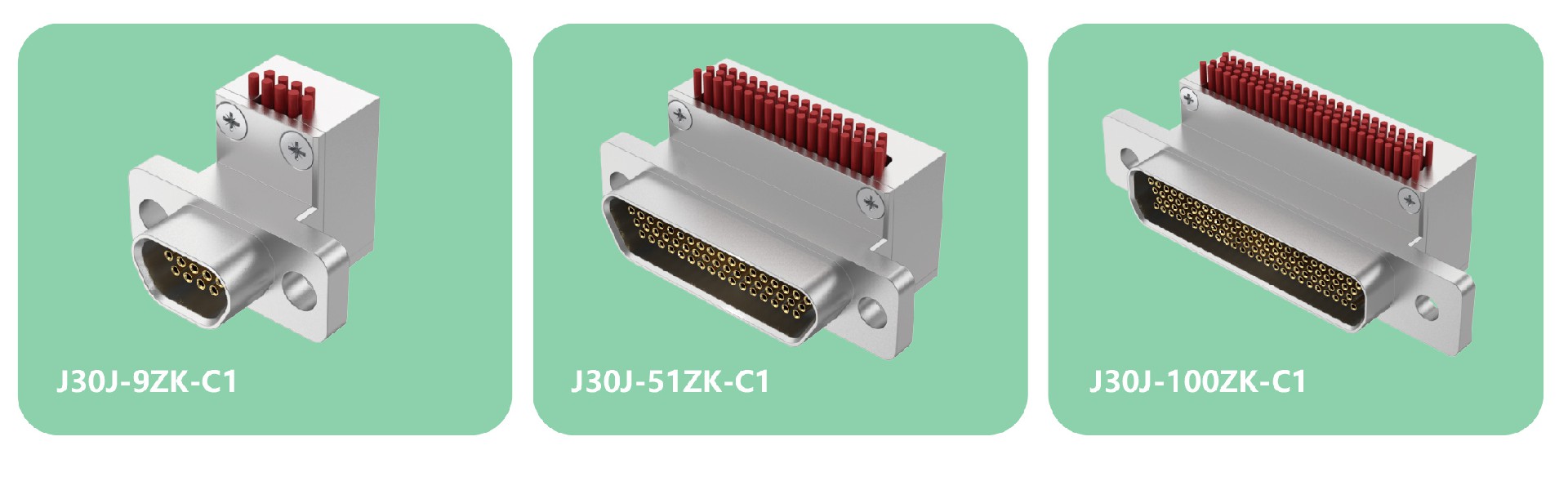

◆ Socket
◆ J30J-9, 15, 21, 25, 31, 37, 51, 66, 74, 100, 144ZK-C1
The product display is as follows:
