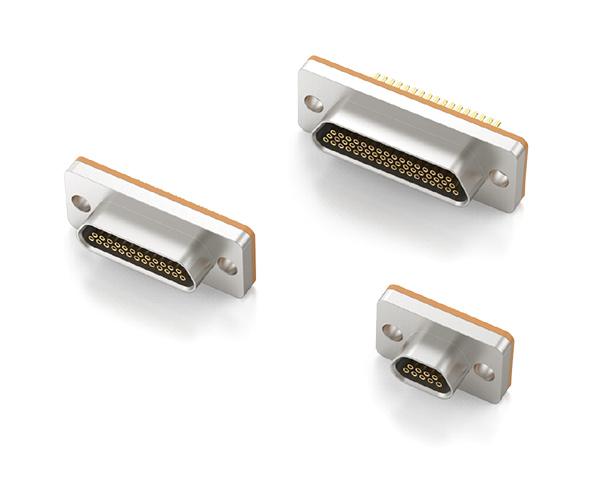

This is a J30J product with higher sealing indicators (note that only the socket end is sealed), using a glass sintered structure, and is used in conjunction with ordinary J30J series plugs and locking components.

This series of sealed electrical connectors is mainly used for pre board installation, and other installation methods require customization.

It is recommended to use blind hole installation method for pre board installation, and the preferred installation screws are J30J series P29, P36, P37, P43 and other screws. There are 9-51 cores, with core characteristics of high density, miniaturization, and high reliability. Mainly used in aerospace, industry, communication, transportation, medical, shipbuilding and other fields.

◆ Environmental temperature: -55 ℃~+125 ℃

◆ Vibration: 10Hz~2000Hz 196m/s ²

◆ Random vibration: power spectral density 0.4G ²/Hz

   Root mean square value of total acceleration 23.1G

◆ Impact: 735m/s ² 11ms

◆ Rated current: 3A

◆ Contact resistance: ≤ 30m Ω

◆ Insulation resistance: ≥ 1000M Ω 500VDC

◆ Dielectric withstand voltage: 600Vr.m.s

◆ Mechanical lifespan: 500 cycles

◆ Air leakage: ≤ 1 × 10-3Pa. cm ³/s
