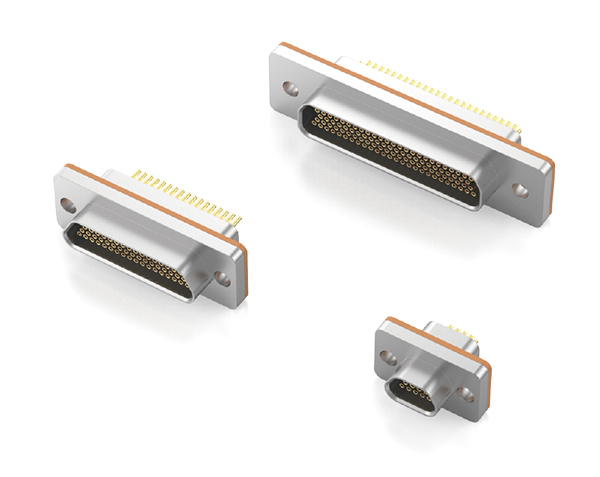

This product has a rubber sealed structure and supports optional crimping/welding (suitable for 0.1-0.15mm ² cables). Support blind insertion design to adapt to extreme environments. There are 9-100 cores. Core features: high density, miniaturization, and high reliability. Mainly used in aerospace, industry, communication, transportation, medical, shipbuilding and other fields.

◆ Environmental temperature: -55 ℃~+125 ℃

◆ Vibration: 10Hz~2000Hz 196m/s ²

◆ Random vibration: power spectral density 0.4G ²/Hz

   Root mean square value of total acceleration 23.1G

◆ Impact: 735m/s ² 11ms

◆ Rated current: 3A

◆ Contact resistance: ≤ 10m Ω

◆ Insulation resistance: ≥ 2000M Ω 500VDC

◆ Dielectric withstand voltage: 800V

◆ Mechanical lifespan: 500 cycles

◆ Air leakage: ≤ 5.0 × 10-2Pa. cm ³/s
