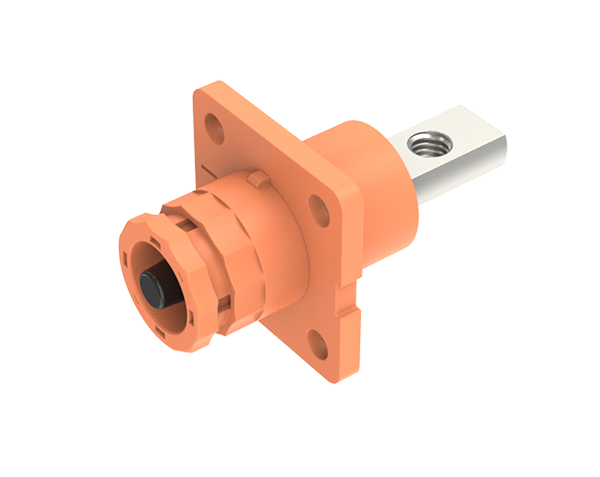

The SZCNT58-QC7 series of connectors is designed specifically for automotive applications, with high load capacity: using a torsion spring structure socket, the mechanical life can reach 10000 times, and the anti misoperation design meets the requirements of battery pack anti misoperation. The pins and sockets, as well as the plugs and sockets, can be matched with each other to meet different needs.
Technical Indicators
| Working temperature | -40 ～ +105℃ |
| Working voltage | 1500V |
| Withstand voltage | 3000V |
| Working current | 120A, DC1000V |
| Contact resistance | ≤ 0.1m Ω |
| Insulation resistance | Normal ≥ 3000M Ω |
| Waterproof rating | IP67 |
