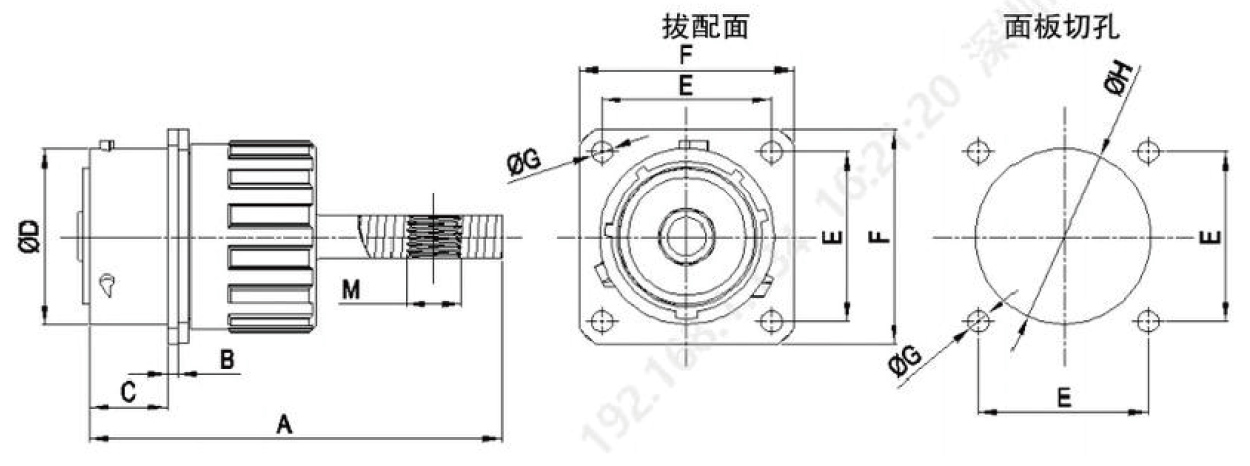

| Part Number | Shell Number | A max | B ±02 | C ±02 | D ±0.15 | E ±0.25 | F ±0.25 | G ±0.1 | H ±0.1 | M |
| SZCNT58-QC2-Y1201TS01-16Y | 12
| 55
| 1.6 | 11.3 | 19.0
| 20.6
| 26.2 | 3.2
| 21.8 | M6*1
|
| SZCNT58-QC2-Y1401TS01-25 | 14
| 56
| 22.2 | 23.0 | 28.6 | 25 | M6*1 |
| SZCNT58-QC2-Y1601TS01-50 | 16
| 61
| 25.3 | 24.6 | 31.0 | 28 | M8*1 |
| SZCNT58-QC2-Y2001TS01-70 | 20
| 70
| 2.4
| 14.5 | 31.7 | 29.4 | 36.5 | 34.8 | M8*1 |
The SZCNT58-QC2 series high-voltage connector is designed with reference to the US military standard MIL-C-26482 series. Its connection method adopts a bayonet connection, which is suitable for various high current connection occasions, such as electric vehicle charging, power distribution systems, industrial heavy-duty connection systems, etc. The high-voltage connector adopts torsion spring connection technology and provides a complete range of standard products to ensure fast and safe connection systems for users. We can provide professional design and customized services according to customer needs.
Technical Indicators
| Working temperature | -40 ～ +125℃ |
| Relative humidity | 90% ～ 95%(40±2℃ ) |
| Working pressure | 4.39KPa~101.33KPa |
| Salt spray performance | 48-120h |
| Waterproof rating | IP67 |
| Working voltage | 1000V |
| Vibration | 10-2000Hz, 196m/s2 instantaneous break ≤ 1 μ s |
| Impact | 980m/s2 instantaneous break ≤ 1 μ s |
| Mechanical lifespan | 500 times |
| Insulation resistance | ≥ 5000M Ω |
| Withstand voltage | 5000V |
