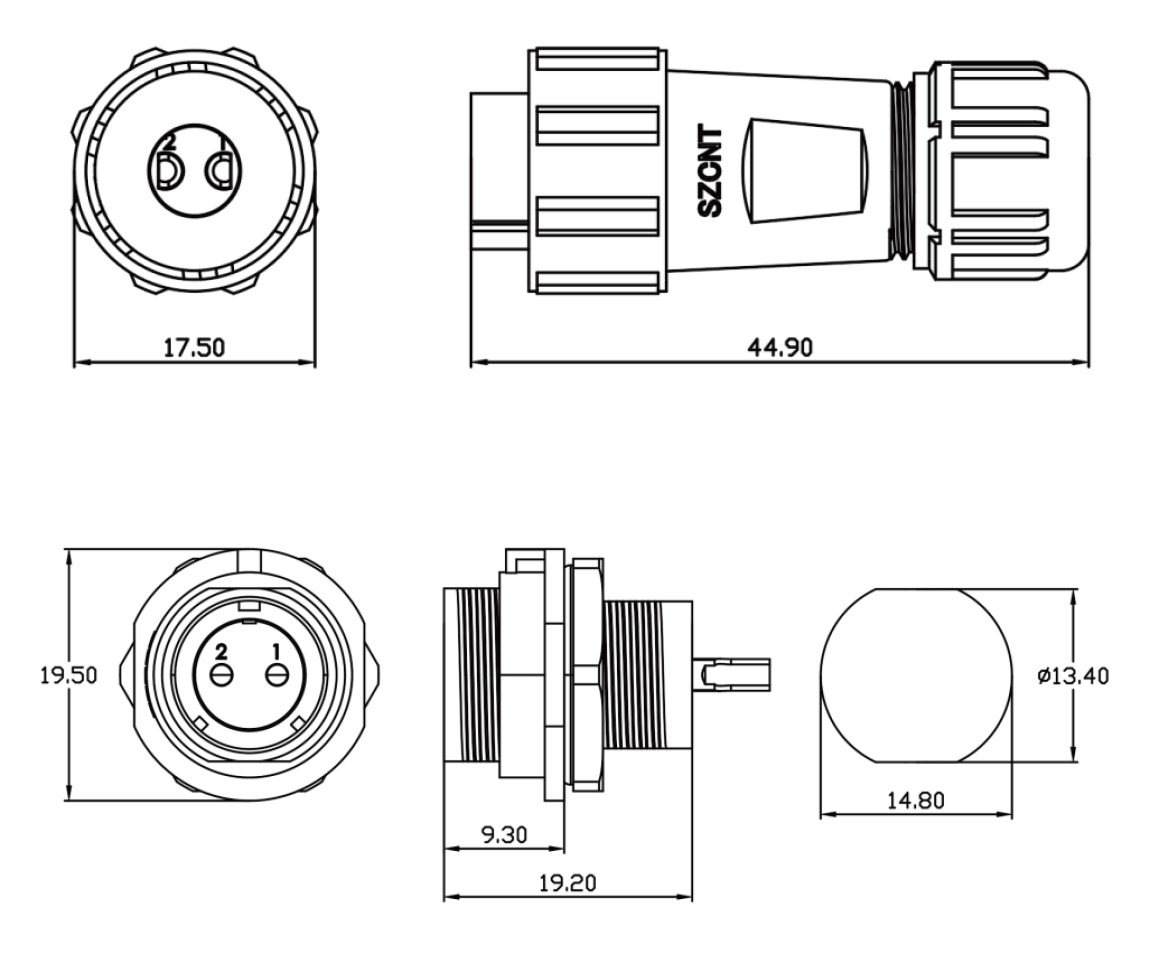

SZCNT53 Series Waterproof Threaded Connector_Shenzhen Connector Technology Co., Ltd


Technical Specifications

Shell Number	SP13
Core Count	2	3	4	5
Front view of the insulator at the male end
Rated current (A)	13	13	5	5
Contact diameter (mm)	Φ1.6×2	Φ1.6×3	Φ1×4	Φ1×5
Working voltage (AC/V)	250	250	200 300	180 300
Voltage withstand (AC) for 1 minute	1500	1500	1500	1000
Contact resistance (MΩ)	2.5	2.5	5	5
Wire gauge (mm ²/AWG)	≤2/14	≤2/14	≤0.75/18 ≤0.5/20	≤0.75/18 ≤0.5/20
Working temperature (℃)	-40~+85℃
Insulation resistance MΩ	≥2000MΩ
Mechanical Life	≥ 500 times
Protection level	IP67

Shell Number	SP13
Core Count	6	7	8
Front view of the insulator at the male end
Rated current (A)	5	5	5
Contact diameter (mm)	Φ1×6	Φ1×7	Φ0.7×9
Working voltage (AC/V)	125 300	150 300	125
Voltage withstand (AC) for 1 minute	1000	1000	1000
Contact resistance (MΩ)	5	5	10
Wire gauge (mm ²/AWG)	≤0.75/18 ≤0.5/20	≤0.75/18 ≤0.5/20	≤0.5/20
Working temperature (℃)	-40~+85℃
Insulation resistance MΩ	≥2000MΩ
Mechanical Life	≥ 500 times
Protection level	IP67
