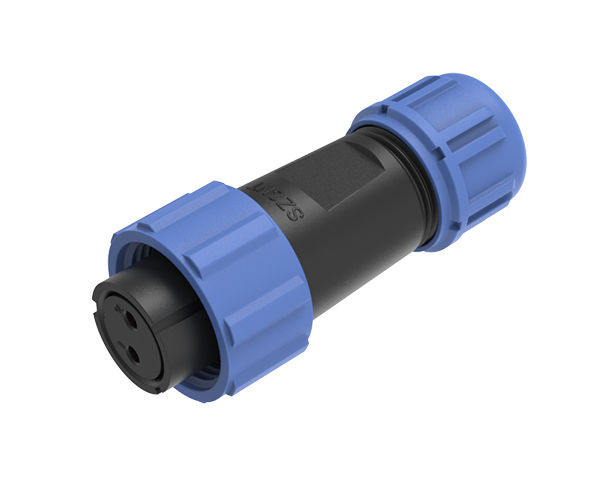

SP11

The connection method of this product is threaded connection, which is a circular sealed connector designed and produced according to IP67 Can provide safe and reliable connections in harsh environments Especially suitable for environments that require strict dust and water resistance

Details


Technical Specifications

Shell Number	SP11
Core Count	2	3	4	5

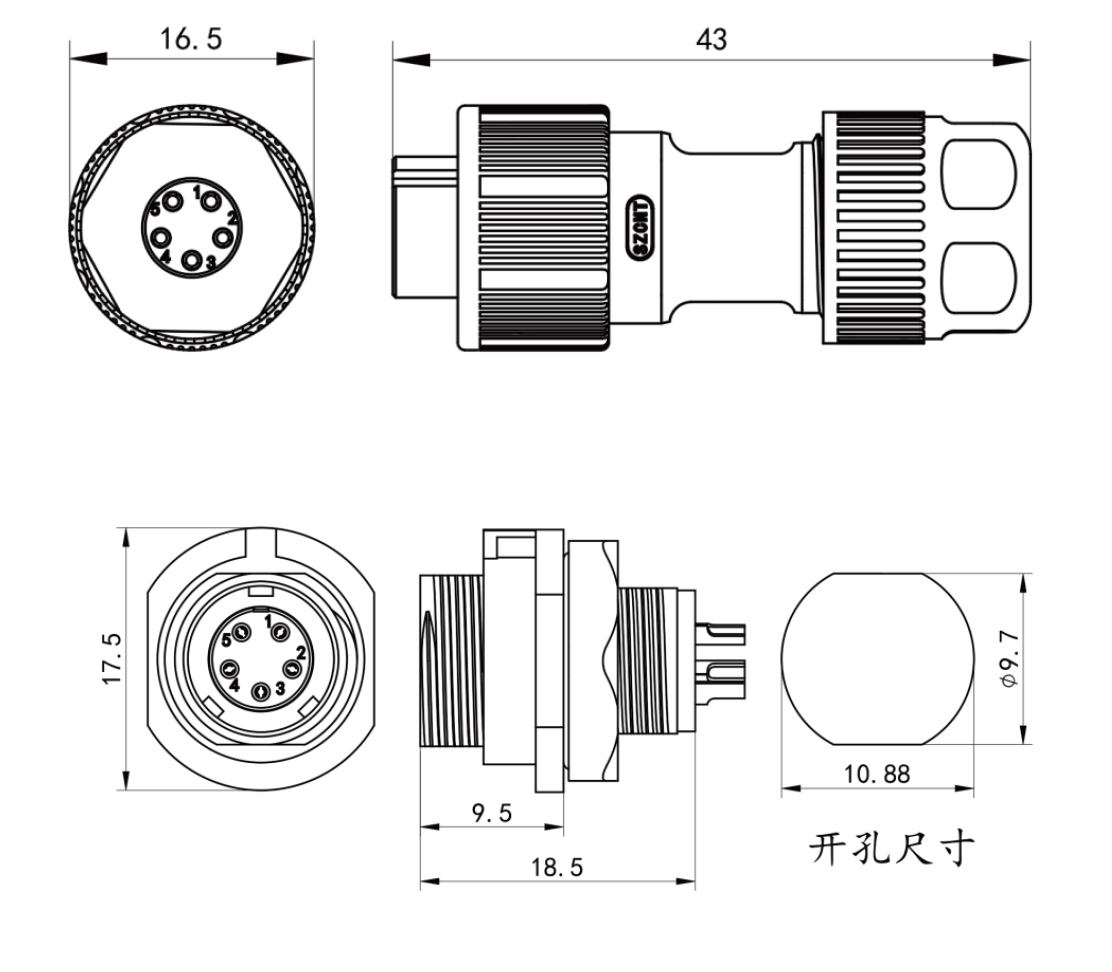

Front view of the insulator at the male end
Rated current (A)	5	5	3	3
Contact diameter (mm)	Φ1×2	Φ1×3	Φ0.7×4	Φ0.7×5
Working voltage (AC/V)	180	180	125	125
Voltage withstand (AC) for 1 minute	1000	1000	1000	1000
Contact resistance (MΩ)	5	5	10	10
Wire gauge (mm ²/AWG)	≤0.75/18	≤0.75/18	≤0.5/20	≤0.5/20
Working temperature (℃)	-40~+85℃
Insulation resistance MΩ	≥2000MΩ
Mechanical Life	≥ 500 times
Protection level	IP67

Selection Table for Pinhole Components

Pinhole type/number of cores	2	3	4	5

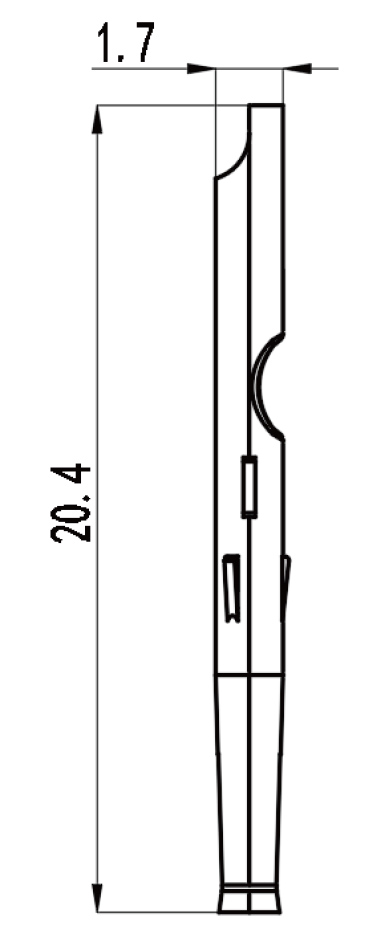

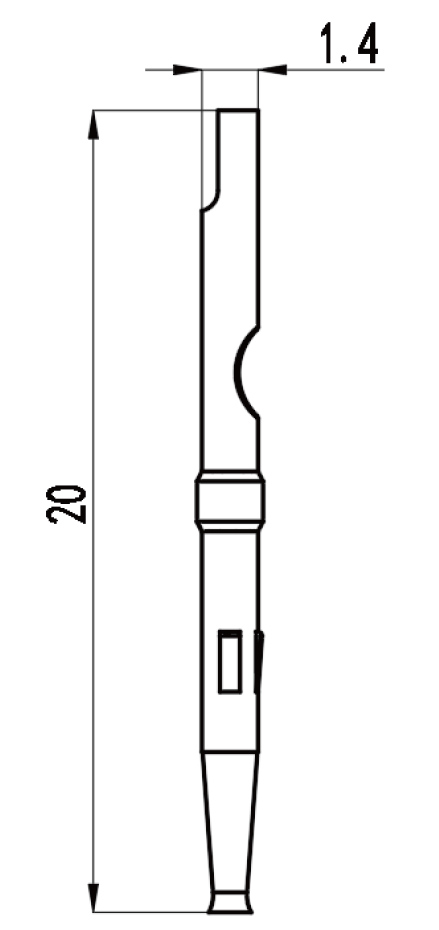

Stamping socket

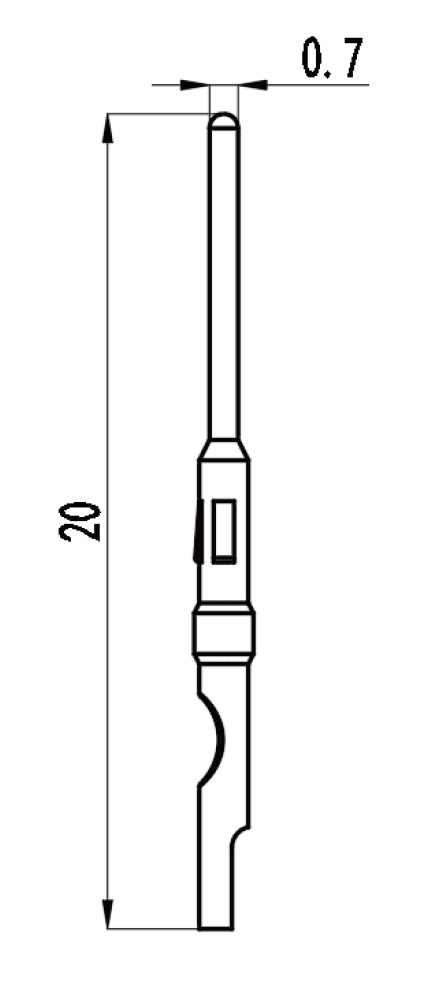

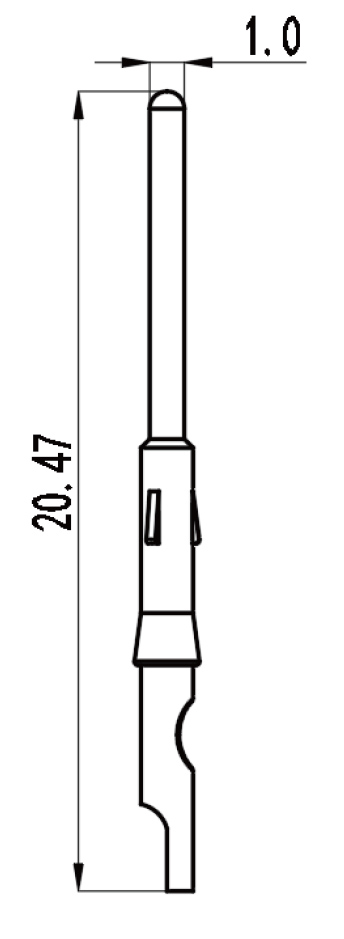

Stamping pins
