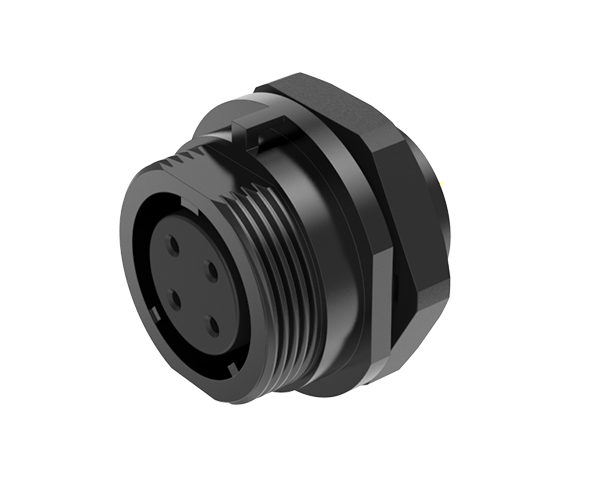

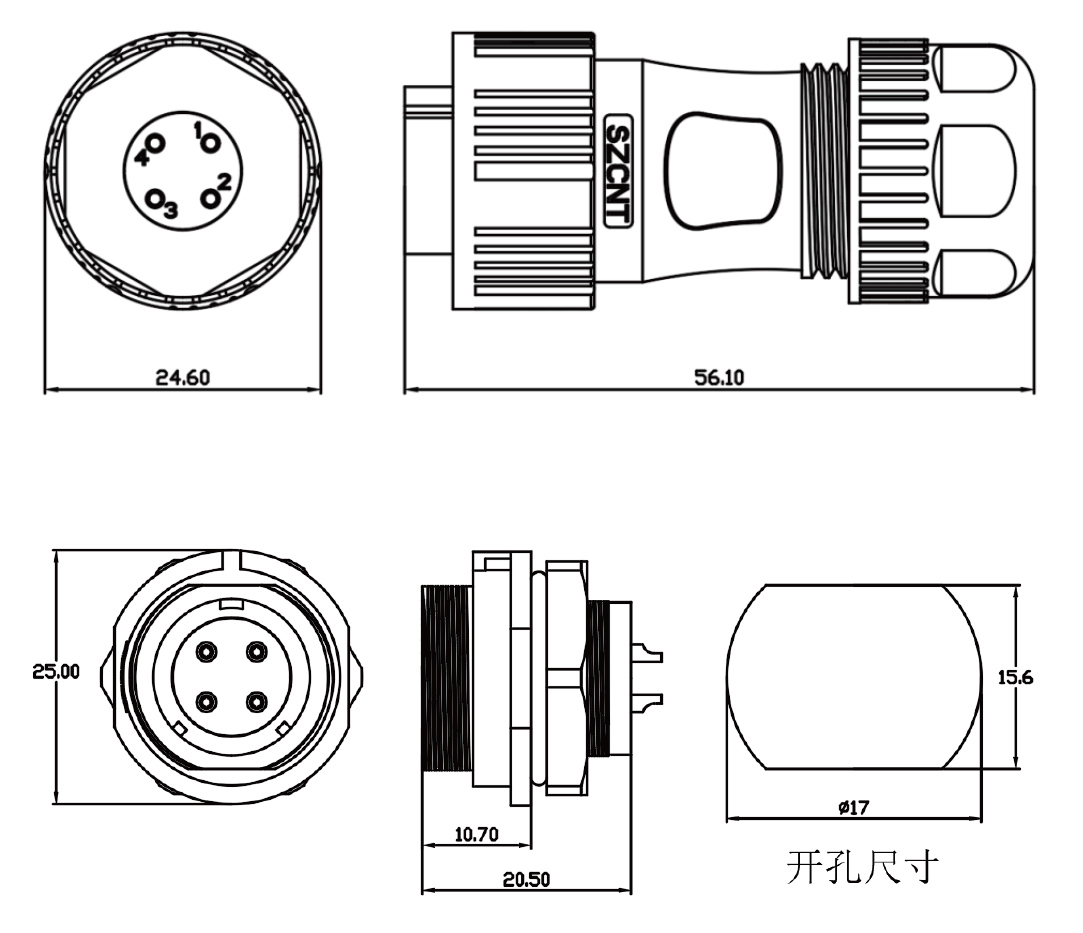

Technical Specifications

Shell Number	SP17
Core Count	2	3	4	2B	2B
Front view of the insulator at the male end
Rated current (A)	10	10	5	15	15
Contact diameter (mm)	Φ1.5×2	Φ1.5×3	Φ1×4	Φ2×2	Φ2x3
Working voltage (AC/V)	500	500	500	500	500
Voltage withstand (AC) for 1 minute	1500	1500	1500	1500	1500
Contact resistance (MΩ)	2.5	2.5	5	2.5	2.5
Wire gauge (mm ²/AWG)	≤2/14	≤2/14	≤0.75/18	≤2/14	≤2/14
Working temperature (℃)	-40~+85℃
Insulation resistance MΩ	≥2000MΩ
Mechanical Life	≥ 500 times
Protection level	IP67

Shell Number	SP17
Core Count	4B	5	7	9	10
Front view of the insulator at the male end
Rated current (A)	15	3	3	3	5
Contact diameter (mm)	Φ2×4	Φ1×5	Φ1×7	Φ1×9	Φ1×10
Working voltage (AC/V)	500	500	500	400	400
Voltage withstand (AC) for 1 minute	1500	1500	1500	1200	1200
Contact resistance (MΩ)	2.5	5	5	5	5
Wire gauge (mm ²/AWG)	≤2/14	≤0.75/18	≤0.75/18	≤0.75/18	≤0.75/18
Working temperature (℃)	-40~+85℃
Insulation resistance MΩ	≥2000MΩ
Mechanical Life	≥ 500 times
Protection level	IP67
