Shenzhen Connector Technology Co., Ltd

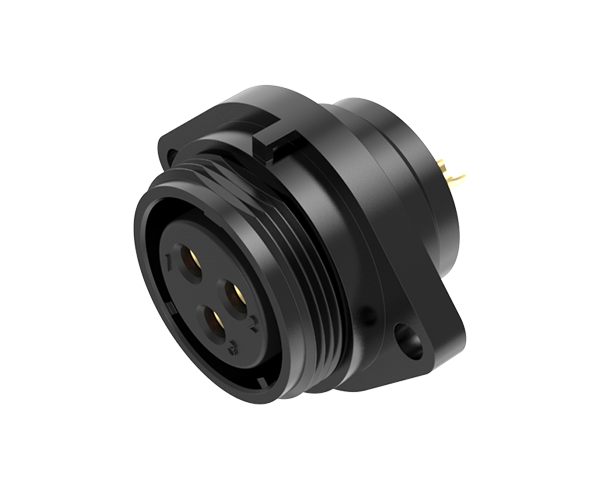

SP21
SP21
SP21
The connection method of this product is threaded connection, which is a circular sealed connector designed and produced according to IP67 Can provide safe and reliable connections in harsh environments Especially suitable for environments that require strict dust and water resistance
Contact Us
Details


Technical Specifications

Shell NumberSP21
Core Count2
342B
3B
Front view of the insulator at the male endSZCNT53系列防水型螺纹连接器-12_07.jpgSZCNT53系列防水型螺纹连接器-12_09.jpgSZCNT53系列防水型螺纹连接器-12_11.jpgSZCNT53系列防水型螺纹连接器-12_13.jpgSZCNT53系列防水型螺纹连接器-12_15.jpg
Rated current (A)10
1051515
Contact diameter (mm)Φ1.5×2Φ1.5×3Φ1×4Φ2×2Φ2x3
Working voltage (AC/V)500500

500

500

500

Voltage withstand (AC) for 1 minute15001500150015001500
Contact resistance (MΩ)2.52.552.52.5
Wire gauge (mm ²/AWG)≤2/14≤2/14

≤0.75/18

≤2/14

≤2/14

Working temperature (℃)-40~+85℃
Insulation resistance MΩ≥2000MΩ
Mechanical Life≥ 500 times
Protection levelIP67



Shell NumberSP21
Core Count4B
579
10
Front view of the insulator at the male endSZCNT53系列防水型螺纹连接器-12_07.jpgSZCNT53系列防水型螺纹连接器-12_09.jpgSZCNT53系列防水型螺纹连接器-12_11.jpgSZCNT53系列防水型螺纹连接器-12_13.jpgSZCNT53系列防水型螺纹连接器-12_15.jpg
Rated current (A)15
5555
Contact diameter (mm)Φ2×4Φ1×5Φ1×7Φ1×9Φ1×10
Working voltage (AC/V)

500

500

400400

400

Voltage withstand (AC) for 1 minute150015001200
12001200
Contact resistance (MΩ)2.55555
Wire gauge (mm ²/AWG)

≤2/14

≤0.75/18

≤0.75/18≤0.75/18

≤0.75/18

Working temperature (℃)-40~+85℃
Insulation resistance MΩ≥2000MΩ
Mechanical Life≥ 500 times
Protection levelIP67
