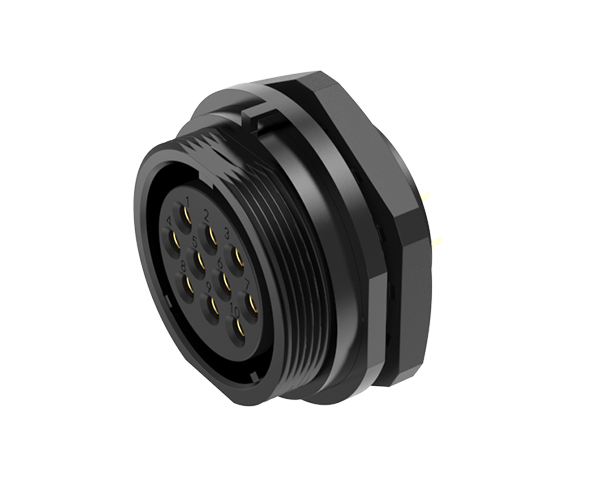

The connection method of this product is threaded connection, which is a circular sealed connector designed and produced according to IP67 Can provide safe and reliable connections in harsh environments Especially suitable for environments that require strict dust and water resistance
Contact Us
Details


Technical Specifications

Shell NumberSP29
Core Count2
347
8
8B
Front view of the insulator at the male endSZCNT53系列防水型螺纹连接器-13_10.jpgSZCNT53系列防水型螺纹连接器-13_07.jpgSZCNT53系列防水型螺纹连接器-13_13.jpgSZCNT53系列防水型螺纹连接器-13_15.jpgSZCNT53系列防水型螺纹连接器-13_17.jpgSZCNT53系列防水型螺纹连接器-13_19.jpg
Rated current (A)50
502525
2560、5
Contact diameter (mm)Φ3.5×2Φ3.5×3Φ2.5×4Φ2.5×7Φ2.5×8

Φ5x2

Φ1x6

Working voltage (AC/V)500500

500

500500

500

400

Voltage withstand (AC) for 1 minute150015001500150015001500
Contact resistance (MΩ)0.50.51115、0.5
Wire gauge (mm ²/AWG)≤10/7≤10/7

≤4/11

≤4/11≤4/11

≤16/5

≤0.75/18

Working temperature (℃)-40~+85℃
Insulation resistance MΩ≥2000MΩ
Mechanical Life≥ 500 times
Protection levelIP67


Shell NumberSP29
Core Count9
1010B12
16

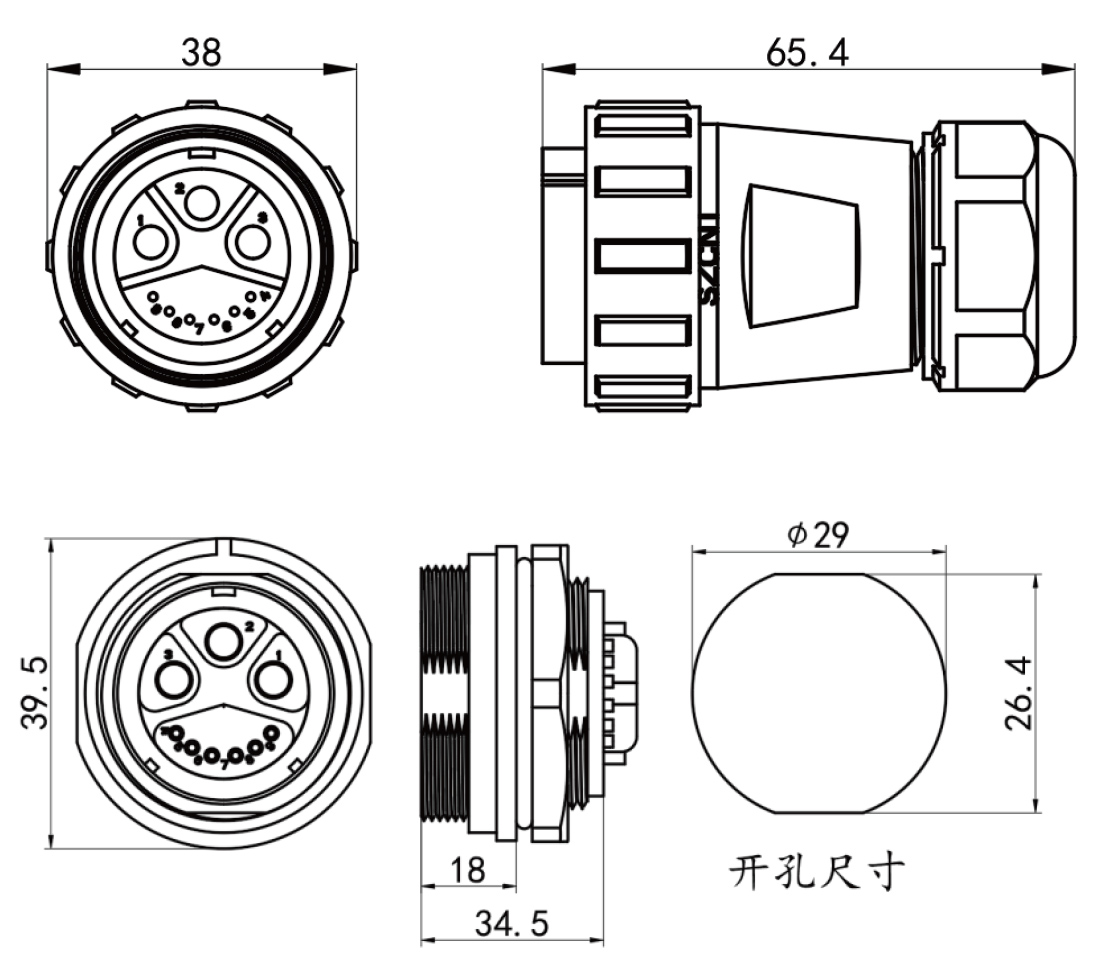

Front view of the insulator at the male endSZCNT53系列防水型螺纹连接器-13_03.jpgSZCNT53系列防水型螺纹连接器-13_05.jpgSZCNT53系列防水型螺纹连接器-13_07.jpgSZCNT53系列防水型螺纹连接器-13_09.jpgSZCNT53系列防水型螺纹连接器-13_11.jpg
Rated current (A)25、5
251010
10
Contact diameter (mm)

Φ2.5×4

Φ1×5

Φ2.5×10Φ1.5×10Φ1.5×12Φ1.5×16
Working voltage (AC/V)

500

400

500

500

500500
Voltage withstand (AC) for 1 minute15001500150015001500
Contact resistance (MΩ)1、512.52.52.5
Wire gauge (mm ²/AWG)

≤4/7

≤0.75/18

≤4/11

≤2/14

≤2/14≤2/14
Working temperature (℃)-40~+85℃
Insulation resistance MΩ≥2000MΩ
Mechanical Life≥ 500 times
Protection levelIP67


Shell NumberSP29
Core Count17
202426
35
Front view of the insulator at the male endSZCNT53系列防水型螺纹连接器-13_18.jpgSZCNT53系列防水型螺纹连接器-13_20.jpgSZCNT53系列防水型螺纹连接器-13_22.jpgSZCNT53系列防水型螺纹连接器-13_24.jpgSZCNT53系列防水型螺纹连接器-13_25.jpg
Rated current (A)10
5555
Contact diameter (mm)Φ1.5×17Φ1.0×20Φ1×24Φ1×26Φ1×35
Working voltage (AC/V)

500

400

400400

400

Voltage withstand (AC) for 1 minute150012001200
12001200
Contact resistance (MΩ)2.55555
Wire gauge (mm ²/AWG)

≤2/14

≤0.75/18

≤0.75/18≤0.75/18

≤0.75/18

Working temperature (℃)-40~+85℃
Insulation resistance MΩ≥2000MΩ
Mechanical Life≥ 500 times
Protection levelIP67
