SZCNT12 Series M12 Threaded Waterproof Connector_Leading Manufacturer of Push-Pull Self-Locking Connectors | Plastic, Metal, Circular Waterproof Push-Pull Connectors, China's OEM/ODM connector source factory

pm08@szcnt.com

Chinese English

Products

Buckle Connector

Cable connectors, holes, soldered

Details

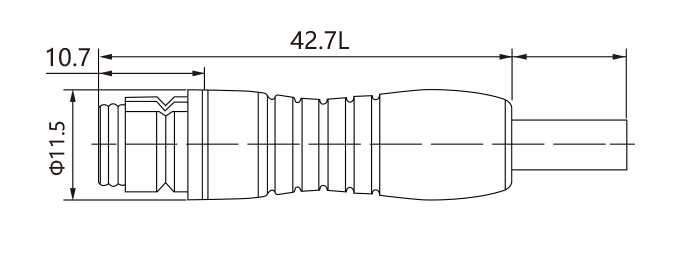

SZCNT12 Series M12 Threaded Waterproof Connector.jpg

Product specifications

Number of contacts	3	5	8	12
Rated voltage	250V	125V	60V	60V
Rated current	7A	5A	2A	2A
Contact face view

Product parameters

Rated impulse voltage	1500V/800V
Degree of protection	IP67
Wire gouge	max.0.25mm（max.AWG24)
Temperature	-25° C ~ +85° C
Contact resistance	≤ 3mΩ
Mechanical operation	>500mating cycles
Over volt uge categorie	II
Materinl group	III
Pollution degree	2
Material of housing	PA(UL 94 V-O)
Material of contact body	PA(UL 94 V-O)
Material ot contact	CuZn（Brass gold plated）
