Buckle Connector
Buckle Connector
Buckle Connector

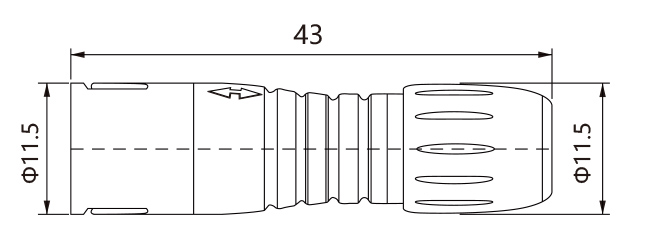

All-plastic assembled plug, pin-end, solder-type
Contact Us
Details



Product specifications


Number of contacts3
5812
Rated voltage250V
125V60V60V
Rated current 7A5A2A2A
Contact face view0_03.jpg0_05.jpg0_07.jpg0_09.jpg


Product parameters


Rated impulse voltage1500V/800V
Degree of protectionIP67
Wire gougemax.0.25mm（max.AWG24)
Temperature-25° C ~ +85° C
Contact resistance≤ 3mΩ
Mechanical operation>500mating cycles
Over volt uge categorieII
Materinl groupIII
Pollution degree2
Material of housingPA(UL 94 V-O)
Material of contact bodyPA(UL 94 V-O)
Material ot contactCuZn（Brass gold plated）
