7/8 Threaded Waterproof Connector
7/8 Threaded Waterproof Connector
7/8 Threaded Waterproof Connector

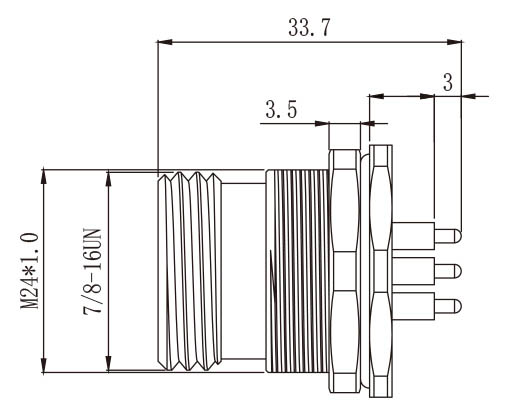

Front locking flange seat, pin end, PCB board mount
Contact Us
Details



Product specifications


Number of contacts2
345
6
Rated voltage300V
300V300V300V300V
Rated current 12A9A9A9A9A
Contact face viewSZCNT12-12_03.jpgSZCNT12-12_05.jpgSZCNT12-12_07.jpgSZCNT12-12_09.jpgSZCNT12-12_11.jpg


Product parameters


Rated impulse voltage3000(UL600V)
Degree of protectionIP67
Wire gougemax.0.15mm（max.AWG16)
Temperature-40° C ~ +85° C
Contact resistance≤ 3mΩ
Mechanical operation>500mating cycles
Over volt uge categorieIII
Materinl groupIII
Pollution degree3
Material of housingCuZn
Material of contact bodyTPU
Material ot contactCuZn（Brass gold plated）
