M40 Threaded Waterproof Connector
M40 Threaded Waterproof Connector
M40 Threaded Waterproof Connector
Flange seats, pins, crimps, threaded connections
Contact Us
Details



Product specifications


Number of contacts6
8

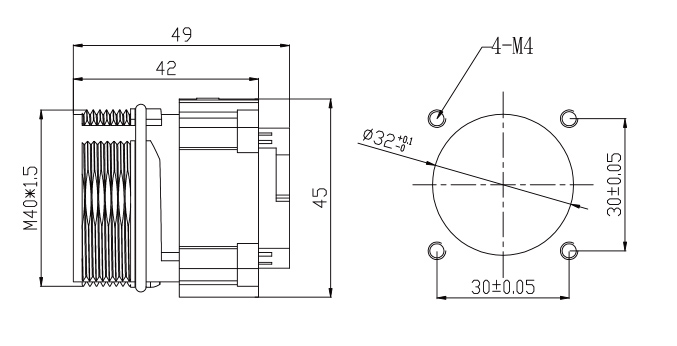

Weld pin endSZCNT12-12_03.jpgSZCNT12-12_05.jpg
Weld hole endSZCNT12-12_09.jpgSZCNT12-12_10.jpg


Product parameters


Number of contacts68
Connector locking systemScrew
Wire gougeCrimping
Cable diameter1.5-10mm2/AWG7-161.5-10mm2/AWG7-16
Degreen of protection-
Degreen of protectionIP67
Mechanical life>500mating cycles
Upper temperature~+85°C
Lower temperature~-40°C
Rated voltage600V/330V600V/330V
Rated impulsevoltage2500V
2500V
Pollution degree2
Power protection levelII
Insulation gradeIII
Rated current(40°C)55A/28A55A/28A
Contact resistance≤ 3mΩ
Contact materialCuZn
Contact platingAu
