M27 All Metal Crimp Cable Connector
M27 All Metal Crimp Cable Connector
M27 All Metal Crimp Cable Connector
Fixed socket, pins, crimping, threaded connections
Contact Us
Details

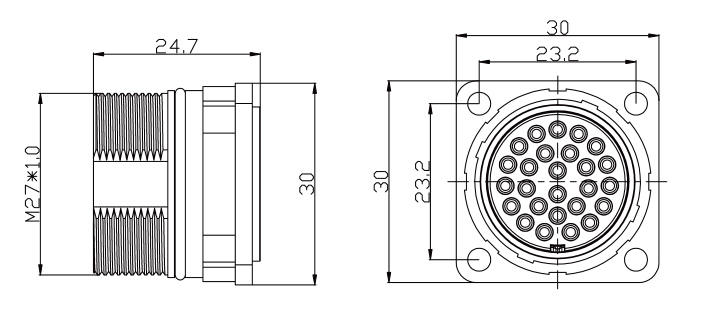

Product specifications


Number of contacts26
Weld pin endSZCNT12-12_03.jpg
Weld hole endSZCNT12-12_06.jpg


Product parameters


Number of contacts26
Connector locking systemScrew
Wire gougeCrimping
Cable diameter1.0mm2/AWG18
Degreen of protection-
Degreen of protectionIP67
Mechanical life>500mating cycles
Upper temperature~+85°C
Lower temperature~-40°C
Rated voltage150V
Rated impulsevoltage1500V
Pollution degree3
Power protection levelII
Insulation gradeIII
Rated current(40°C)8A
Contact resistance≤ 3mΩ
Contact materialCuZn
Contact platingAu
