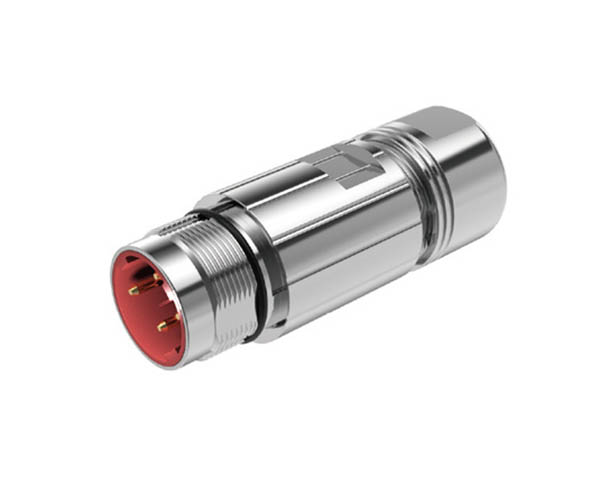

M23 Power Connector
M23 Power Connector
M23 Power Connector
Cable connectors, pins, crimping, threaded connections
Contact Us
Details



Product specifications


Number of contacts46
89
Weld pin endSZCNT12-12_03.jpgSZCNT12-12_05.jpgSZCNT12-12_07.jpgSZCNT12-12_09.jpgSZCNT12-12_11.jpg
Weld hole endSZCNT12-12_18.jpgSZCNT12-12_19.jpgSZCNT12-12_20.jpgSZCNT12-12_21.jpgSZCNT12-12_22.jpg


Product parameters


Number of contacts4689
Connector locking systemScrew
Wire gougeCrimping
Cable diameter0.25-0.4mm20.06-1.0mm2/0.25-4.0mm2
Degreen of protection-
Degreen of protectionIP67
Mechanical life>500mating cycles
Upper temperature~+85°C
Lower temperature~-40°C
Rated voltage600V300V/600V
Rated impulsevoltage2500V
2500V
Pollution degree2
Power protection levelII
Insulation gradeIII
Rated current(40°C)28A8A/28A
Contact resistance≤ 3mΩ
Contact materialCuZn
Contact platingAu
