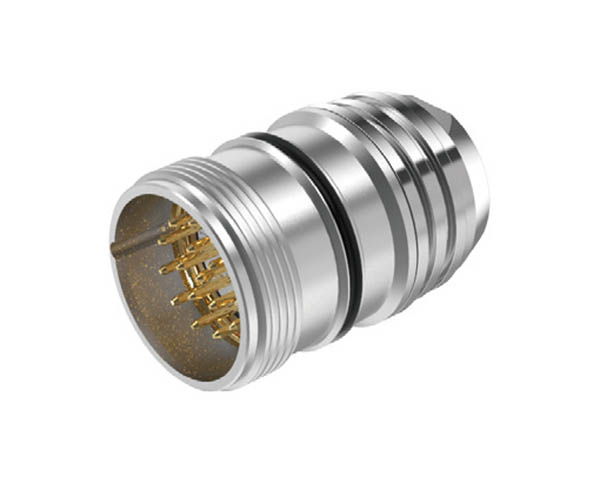

M23 T Series Overmolded Connector
M23 T Series Overmolded Connector
M23 T Series Overmolded Connector
Cable connectors, pins, soldering, threaded connections
Contact Us
Details


Product specifications


Number of contacts679
121617
19

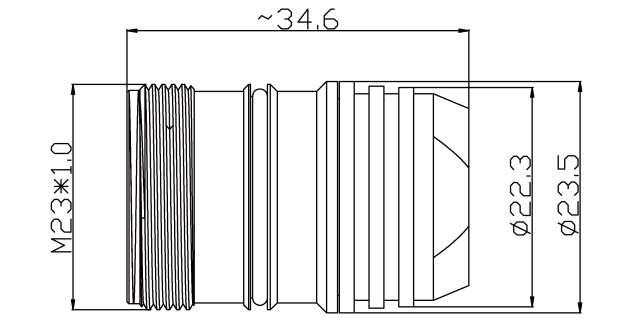

Weld pin endSZCNT12-12_03.jpgSZCNT12-12_05.jpgSZCNT12-12_07.jpgSZCNT12-12_09.jpgSZCNT12-12_11.jpgSZCNT12-12_13.jpgSZCNT12-12_15.jpg
Weld hole endSZCNT12-12_24.jpgSZCNT12-12_25.jpgSZCNT12-12_26.jpgSZCNT12-12_27.jpgSZCNT12-12_28.jpgSZCNT12-12_29.jpgSZCNT12-12_30.jpg


Number of contacts679
121617
19
Crimping pin endSZCNT12-12_38.jpgSZCNT12-12_39.jpgSZCNT12-12_40.jpgSZCNT12-12_42.jpgSZCNT12-12_44.jpgSZCNT12-12_46.jpgSZCNT12-12_47.jpg
Crimping hole endSZCNT12-12_55.jpgSZCNT12-12_56.jpgSZCNT12-12_58.jpgSZCNT12-12_60.jpgSZCNT12-12_61.jpgSZCNT12-12_62.jpgSZCNT12-12_63.jpg

Product parameters

Number of contacts67912161719
Connector locking systemScrew
Wire gougeWelding/Crimping
Cable diameter0.25mm2/AWG148*1.5/1*2.5mm21.0mm21.0mm2/AWG1816*1/3*1.5mm2
Degreen of protection-
Degreen of protectionIP67
Mechanical life>500mating cycles
Upper temperature~+85°C
Lower temperature~-40°C
Rated voltage250V150V
Rated impulsevoltage2500V1500V
Pollution degree2
Power protection levelII
Insulation gradeIII
Rated current(40°C)30A8*8/1*20A8A16*8/3*10A
Contact resistance≤ 3mΩ
Contact materialCuZn
Contact platingAu
