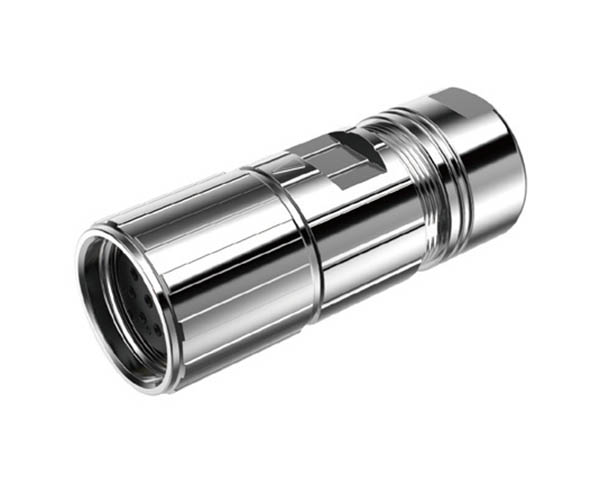

M17 Thread Waterproof Connector
M17 Thread Waterproof Connector
M17 Thread Waterproof Connector
Cable connectors, holes, crimps, threaded connections
Contact Us
Details

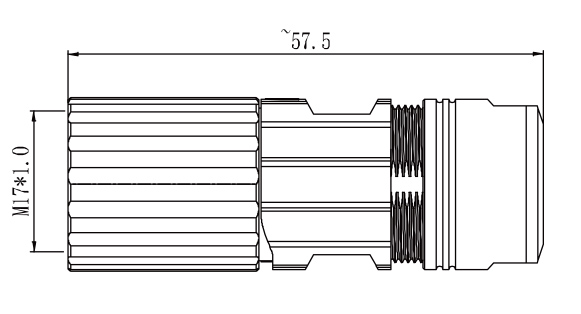

Product specifications


Number of contacts2817
Pin end0_03.jpg0_05.jpg0_07.jpg
hole end0_12.jpg0_13.jpg0_14.jpg


Product parameters

Number of contacts2817
Connector locking systemScrew
Wire gougeWelding/Crimping
Cable diameter0.25mm2/AWG141.0mm2/AWG1816*1/3*1.5mm2
Degreen of protection-
Mechanical life>500mating cycles
Upper temperature~+85°C
Lower temperature~-40°C
Rated voltage110V63V
Rated impulsevoltage2500V1500V
Pollution degree2
Power protection levelII
Insulation gradeIII
Rated current(40°C)30A
3.6A
Contact resistance≤ 3mΩ
Contact materialCuZn
Contact platingAu
