M16 Thread Waterproof Connector
M16 Thread Waterproof Connector
M16 Thread Waterproof Connector

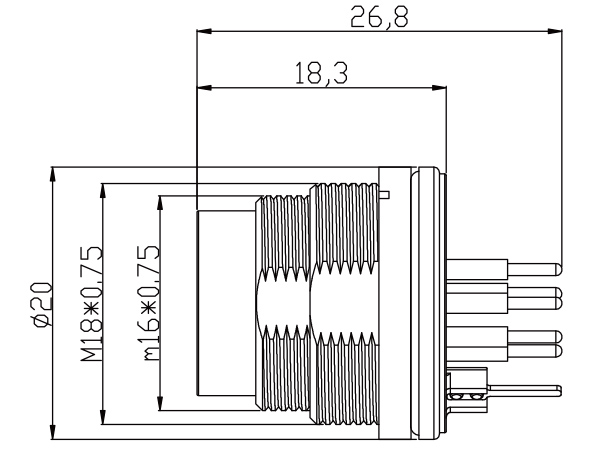

Front locking flange seat, pin end, shielded, PCB board mount
Contact Us
Details


Product specifications


Number of contacts34567
8121419
Rated voltage250V
250V250V250V60V60V60V30V
30V
Rated current10A6A6A5A5A5A3A3A3A
Contact face viewSZCNT12-12_03.jpgSZCNT12-12_05.jpgSZCNT12-12_07.jpgSZCNT12-12_09.jpgSZCNT12-12_11.jpgSZCNT12-12_13.jpgSZCNT12-12_15.jpgSZCNT12-12_17.jpgSZCNT12-12_19.jpg


Product parameters

Rated impulse voltage1500V/500V/500V/500V/500V
TerminationIP67
Wire gougeMax.0.75mm(max.AWG20)
Temperature-40°C~+85°C
Contact resistance≤5mΩ/≤5mΩ/≤3mΩ/≤3mΩ/≤3mΩ
Mechanical operation>500mating cycles
Over volt uge categorieI(II)
Materinl groupIII
Pollution degree1(2)
Material of housingCuZn(Brass nickel plated)
Material of contact bodyPA
Material ot contactCuZn(Brass gold plated)
