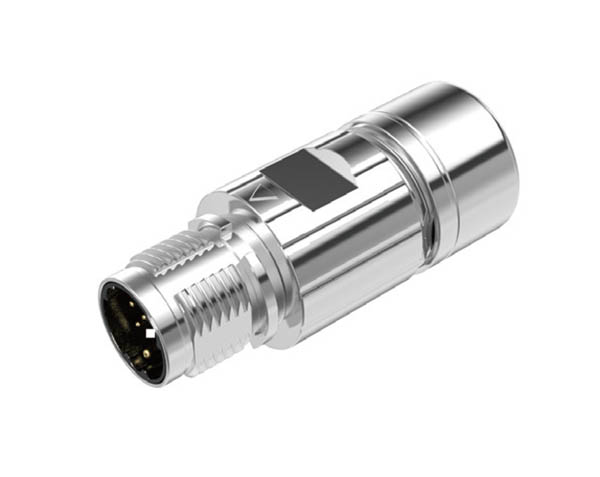

M12 Thread Waterproof Connector
M12 Thread Waterproof Connector
M12 Thread Waterproof Connector
All-metal field-assembled plugs, pin ends, shielded, soldered, straight
Contact Us
Details


Product specifications


 Number of contacts4581217
Ant insertion error codingADABA
AA
Rated voltage250V
250V60V
60V
30V30V30V
Rated current4A4A4A4A2A1.5A1.5A
Contact face view0-1_03.jpgSZCNT12-12_03.jpgSZCNT12-12_05.jpgSZCNT12-12_07.jpgSZCNT12-12_09.jpgSZCNT12-12_11.jpgSZCNT12-12_13.jpg
Number of contacts8
63(2+PE)4(3+PE)45(4+PE)
Ant insertion error codingX
YY
SS
TLK
Rated voltage50V AC/60V/DC
30V
50V630V630V
63V63V
63V
Rated current0.5A
0.5A/6A0.5A/12A12A12A12A16A12A
Contact face viewSZCNT12-12_22.jpgSZCNT12-12_24.jpgSZCNT12-12_26.jpgSZCNT12-12_28.jpgSZCNT12-12_30.jpg000_07.jpgSZCNT12-12_33.jpgSZCNT12-12_35.jpg


Product parameters

Rated impulse voltage500V,800V,1500V,2500V
TerminationIP67
Wire gouge0.14mm2 ( AWG26).0.25mm2(AWG24)
Temperature-40°C~+85°C
Contact resistance≤3mΩ
Mechanical operation>500mating cycles
Over volt uge categorieII
Materinl groupII
Pollution degree3
Material of housingCuZn(Brass nickel plated)
Material of contact bodyPA
Material ot contactCuZn(Brass gold plated)
