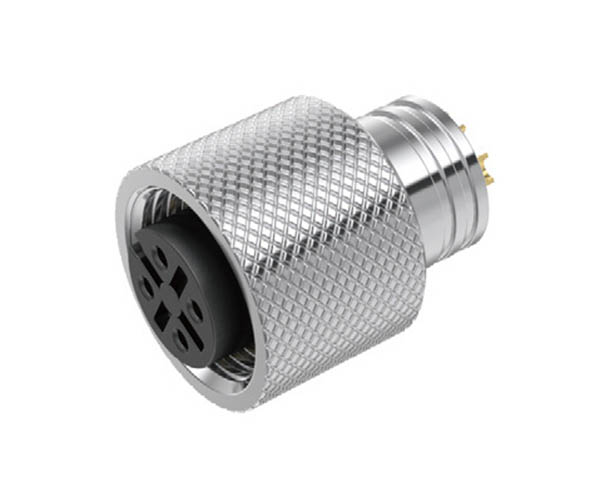

M12 Thread Waterproof Connector
M12 Thread Waterproof Connector
M12 Thread Waterproof Connector
Cast cable plugs, hole ends, shielded, welded
Contact Us
Details


Product specifications


 Number of contacts4581217
Ant insertion error codingADABA
AA
Rated voltage250V
250V60V
60V
30V30V30V
Rated current4A4A4A4A2A1.5A1.5A
Contact face view0-1_03.jpgSZCNT12-12_03.jpgSZCNT12-12_05.jpgSZCNT12-12_07.jpgSZCNT12-12_09.jpgSZCNT12-12_11.jpgSZCNT12-12_13.jpg
Number of contacts8
63(2+PE)4(3+PE)45(4+PE)
Ant insertion error codingX
YY
SS
TLK
Rated voltage50V AC/60V/DC
30V
50V630V630V
63V63V
63V
Rated current0.5A
0.5A/6A0.5A/12A12A12A12A16A12A
Contact face viewSZCNT12-12_22.jpgSZCNT12-12_24.jpgSZCNT12-12_26.jpgSZCNT12-12_28.jpgSZCNT12-12_30.jpg000_07.jpgSZCNT12-12_33.jpgSZCNT12-12_35.jpg


Product parameters

Rated impulse voltage500V,800V,1500V,2500V
TerminationIP67
Wire gouge0.14mm2 ( AWG26).0.25mm2(AWG24)
Temperature-40°C~+85°C
Contact resistance≤3mΩ
Mechanical operation>500mating cycles
Over volt uge categorieII
Materinl groupII
Pollution degree3
Material of housingCuZn(Brass nickel plated)
Material of contact bodyPA
Material ot contactCuZn(Brass gold plated)
