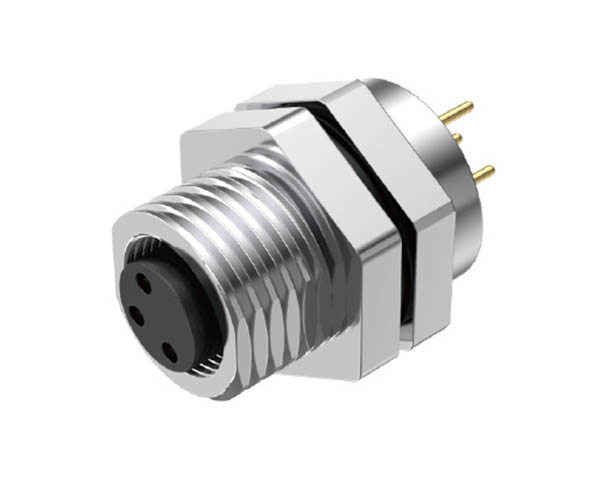

M8 Thread Waterproof Connector
M8 Thread Waterproof Connector
M8 Thread Waterproof Connector
Front locking flange, hole end, unshielded, PCB board mount
Contact Us
Details


Product specifications


 Number of contacts3
4568
Ant insertion error coding--ABA
A
Rated voltage60V
60V30V
30V
60V60V
Rated current4A4A4A3A2A1.5A
Contact face view0_03.jpg0_05.jpg0_07.jpg0_09.jpg0_11.jpg0_13.jpg


Product parameters

Rated impulse voltage800V
TerminationIP67
Wire gouge0.14mm2 ( AWG26).0.25mm2(AWG24)
Temperature-40°C~+85°C
Contact resistance≤3mΩ
Mechanical operation>500mating cycles
Over volt uge categorieII
Materinl groupII
Pollution degree3
Material of housingCuZn(Brass nickel plated)
Material of contact bodyPA
Material ot contactCuZn(Brass gold plated)
