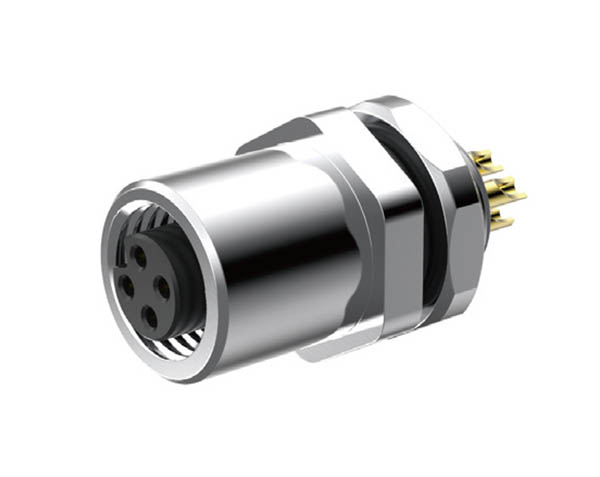

M5 Tthread Waterproof Connector
M5 Tthread Waterproof Connector
M5 Tthread Waterproof Connector

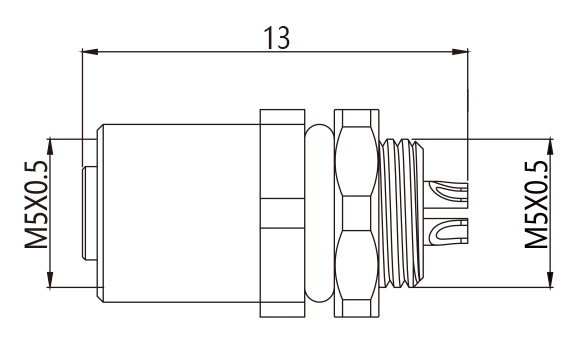

Rear locking flange seat, hole end, unshielded, welded
Details


Spercitications


Number of contacts34
Connector locking systemscrew
Terminationassembled with sing wires
Wire gouge0.14mm2 ( AWG26).0.25mm2(AWG24)
Cahie outlet-
Degree of protectionIP67
Mechanical operation>100mating cycles
Upper temperature~+80°C
Lower temperature~-25°C
Rated voltage60V
Rated impulse voltage800V
Pollution degree3
Overvoltuge categorieII
Materinl groupI
Rated current (40°C)1A
Contact resistance≤3mΩ
Material ot contactCuZn(brass)
Contact platingAu(gold)
Material of contact bodyPA
Material of housingCuZn(brass nickel plated)
