Main features

● Quick connect plug-in self-locking system with low insertion loss

● Pin core configuration for two optical fibers, two power supplies, and two signals

● The stainless steel casing is suitable for various harsh usage environments

● Fiber optic needle core cleaning is simple and convenient

● Can be terminated on-site

Technical Specifications

Contact resistance: ＜ 5m Ω

Insulation resistance:>1000M Ω

Cable tension:>700N

Drop test: 2m

Humidity: up to 95% at a temperature of 60 ℃

Standard F2 needle core temperature range: -40 ℃~+80 ℃

Vibration: 100g, 10-50ms

Vibration: 7 times (20-2000Hz)

Salt spray test: 48 hours

Protection level: IP68

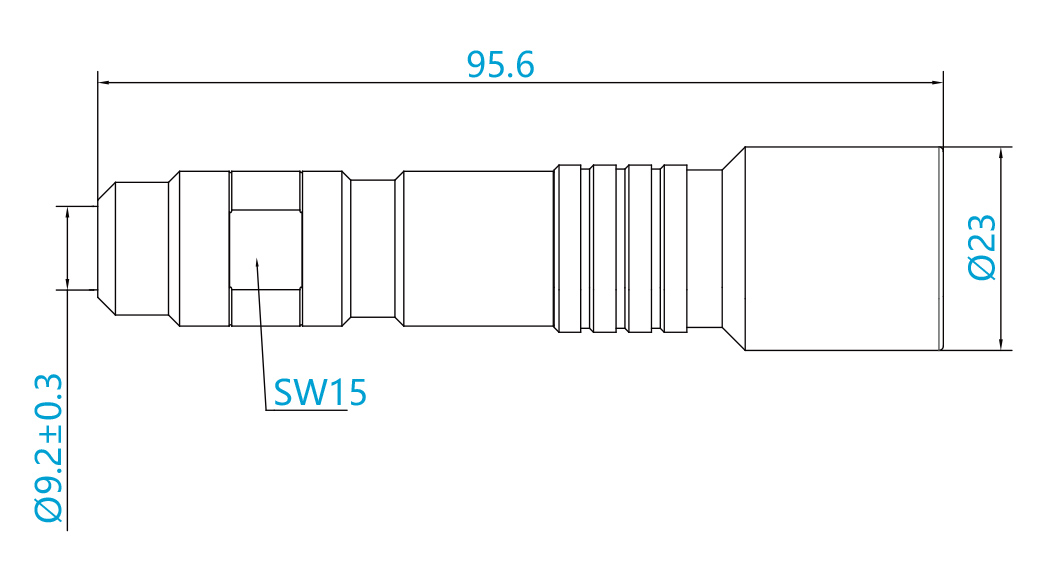

MUW floating socket/with cable clamp/extended housing/equipped with dust cover
