Main features

● Used for Gigabit Ethernet transmission systems, using push-pull or threaded connections

● It has the characteristics of small size, high density, high reliability, anti rotation and anti misplacement, 360 ° shielding, etc

● Multiple shell numbers, different contacts meet different needs

● Contact welding, diversified accessories to meet different wire diameter requirements

● Push pull type with quick insertion and self-locking function

● 100% anti tilt insertion

Technical Specifications

Insertion and unplugging times:>500 times

Working temperature: -65 ℃~+175 ℃

Vibration: Sinusoidal vibration frequency 10-2000Hz, acceleration 147m/s

Impact: 11ms half sine wave acceleration of 490m/s

Salt spray test: 96 hours

Voltage endurance: 500V AC (at room temperature)/100V AC (in humid conditions)

Insulation resistance: ≥ 5000M Ω (at room temperature)/≥ 50M Ω (in humid conditions)

Material: Shell: Copper Alloy, Stainless Steel

Plating: Nickel plating, passivation

Insulator: Thermoplastic

Contact: Copper alloy gold-plated

Protection level: IP67

Characteristic impedance: 100 ± 15 Ω

Transmission rate: meets the requirements of IEEE802.3ab. Sec40.6.1.2.2 and 40.6.1.2.3

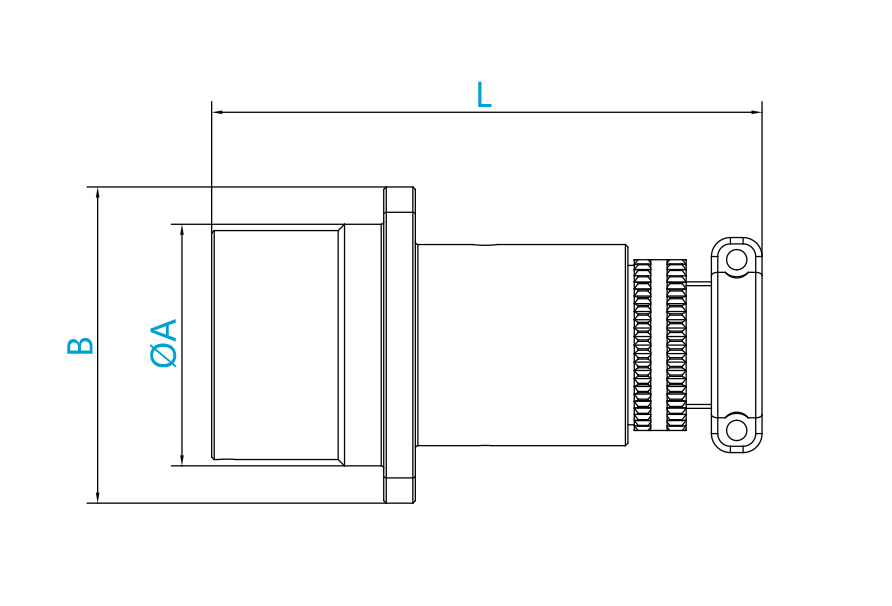

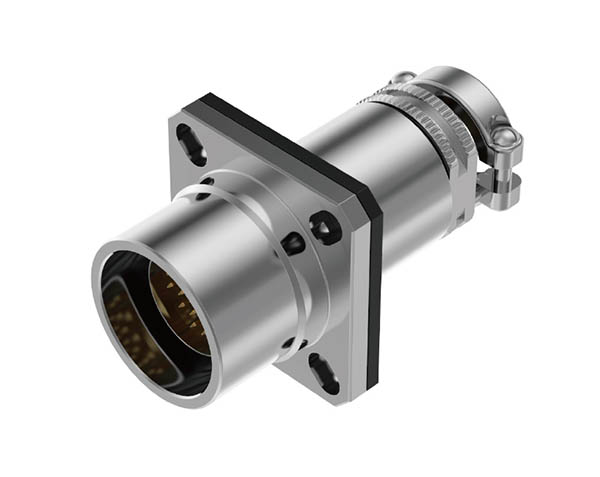

YMT square socket
