Main features

This connector is mainly used for low-frequency signal transmission in electronic devices, and has the characteristics of small size, easy operation, good shielding effect, good sealing, anti electromagnetic interference, good environmental resistance, and long service life. Widely used in medical equipment, field communication systems, military computers, communication telephones, walkie talkies, small terminals, medical instruments, data acquisition, video transmission, satellite communication and other equipment.

● Safe and fast plug-in self-locking system

● The wiring methods include soldering and optional pin cores for printed boards

● Semi circular metal sheet anti misplacement structure

● Comprehensive shielding effect, anti electromagnetic interference

● Multi core type 2-16 cores optional

● High density installation, saving space

Technical Specifications

Insertion and extraction times:>5000 times

Humidity: up to 95% at a temperature of 60 ℃

Temperature range: -40 ℃~150 ℃ (vacuum water tight type -40 ℃~125 ℃)

Vibration: 10-2000Hz, 15g

Mechanical impact: 100g · 6ms

Salt spray test: 48 hours

Protection level: IP68

Shielding effect:>75dB at 10MHz;>40dB at 1MHz

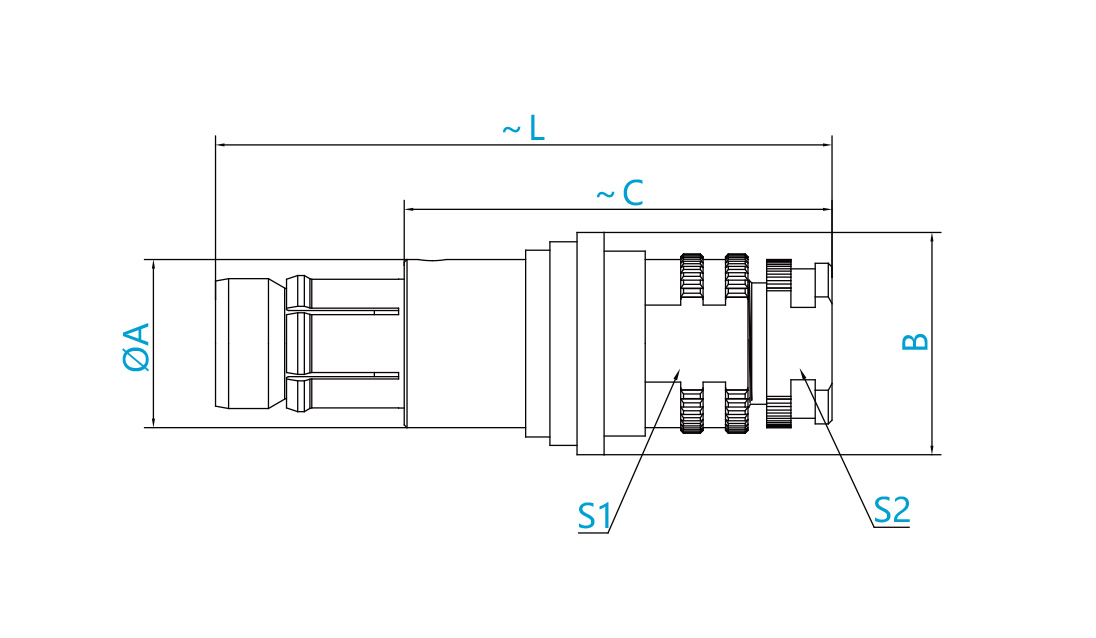

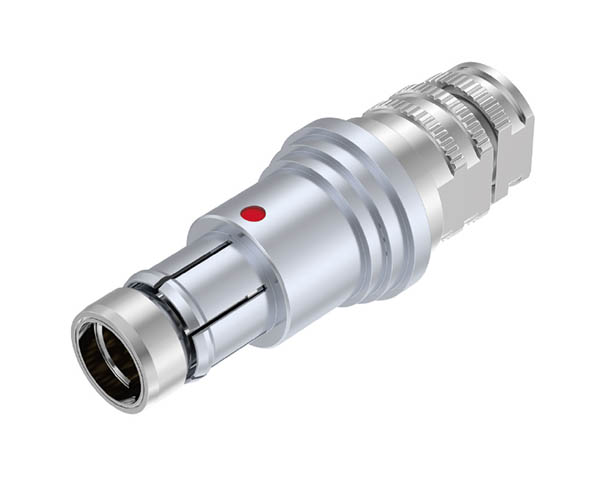

TL series straight plug/half moon positioning/cable clamp
