Main features
● Safe and Rapid Self-Locking System
The wiring methods include soldering and printed board pin connections, with options for pin cores
● The half-month plug core is equipped with both male and female pin cores, featuring polarity positioning
● All-round shielding effect, anti-electromagnetic interference
● Multi-core type with 18 cores available
● Short series, length less than 30mm
Technical Specifications
Insertion and removal cycles: >3000 times
Humidity: Up to 95% at 60°C
Temperature range: -40℃ to +150℃ (vacuum water-tight type: -40℃ to 125℃) Vibration: 10~2000Hz, 15g
Mechanical shock: 100g.6ms
Salt spray test: 48 hours
Protection Class: IP50
Shielding effectiveness: >75dB at 10MHz; >40dB at 1MHz

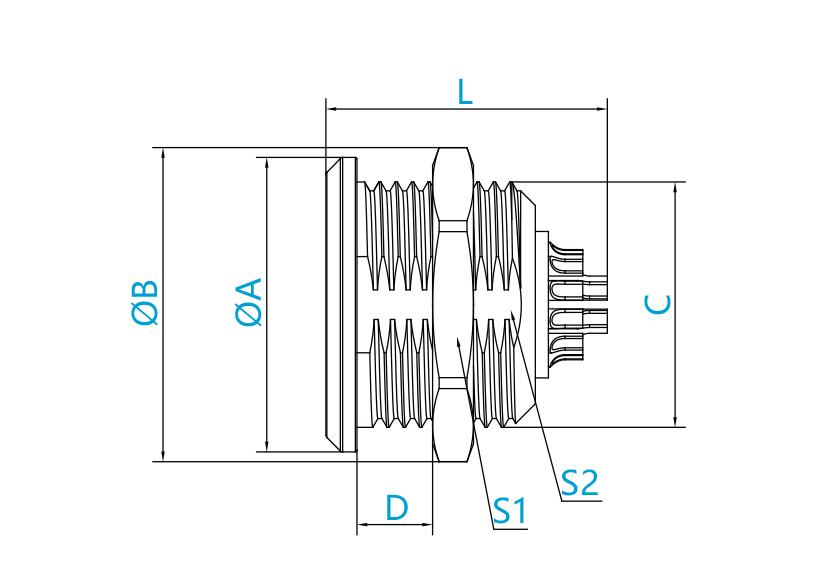

ZGG series fixed socket/single key fixed/nut fixed
| Number | External dimensions of connector (mm) |
| Model | Shell number | A
| B | C | D
| L | S1 | S2 |
| ZGG | 2G | 18 | 19.5 | M15x1.0 | 6 | 17.2 | 17 | 13.8
|
