Main features

● Safe and Rapid Self-Locking System

The wiring methods include soldering and printed board pin connections, with options for pin cores

● The half-month plug core is equipped with both male and female pin cores, featuring polarity positioning

● All-round shielding effect, anti-electromagnetic interference

● Multi-core type with 18 cores available

● Short series, length less than 30mm

Technical Specifications

Insertion and removal cycles: >3000 times

Humidity: Up to 95% at 60°C

Temperature range: -40℃ to +150℃ (vacuum water-tight type: -40℃ to 125℃) Vibration: 10~2000Hz, 15g

Mechanical shock: 100g.6ms

Salt spray test: 48 hours

Protection Class: IP50

Shielding effectiveness: >75dB at 10MHz; >40dB at 1MHz

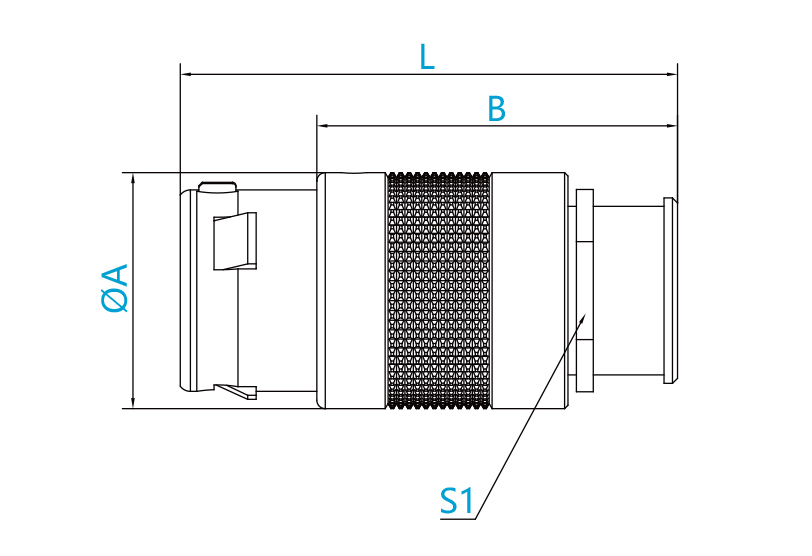

TGG Series Straight Plug/Single Key/Cable Clamp/With Sleeve
