Main features

● Safe and fast plug-in self-locking system

● The wiring methods include soldering and optional pin cores for printed boards

● Half moon plug-in core is equipped with both male and female pin cores, with polarity positioning

● Comprehensive shielding effect, anti electromagnetic interference

● Multi core type 2~14 cores

● Short series, with a length less than 30mm

● Multiple installation methods

Technical Specifications

Insertion and extraction times:>3000 times

Humidity: up to 95% at a temperature of 60 ℃

Temperature range: -40 ℃~+150 ℃ (vacuum water tight type -40 ℃~125 ℃) Vibration: 10~2000Hz, 15g

Mechanical impact: 100g · 6ms

Salt spray test: 48 hours

Protection level: IP50

Shielding effect:>75dB at 10MHz;>40dB at 1MHz

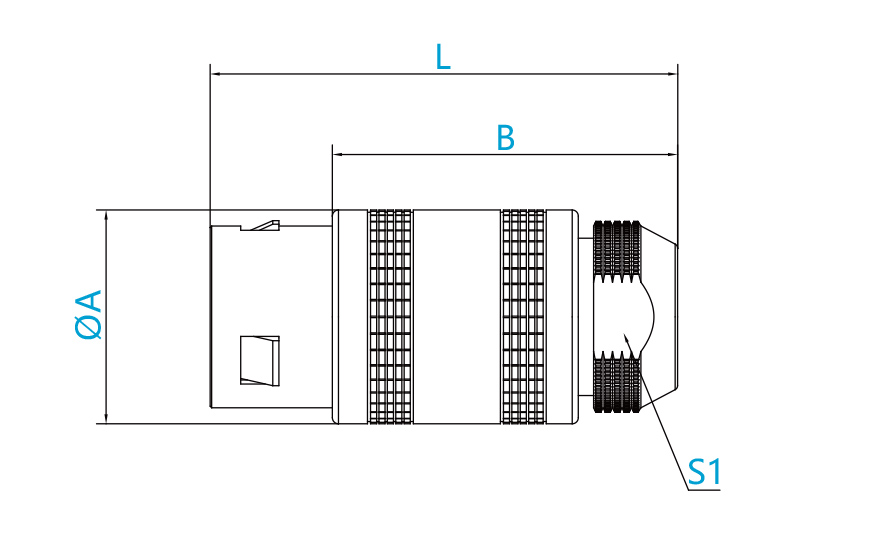

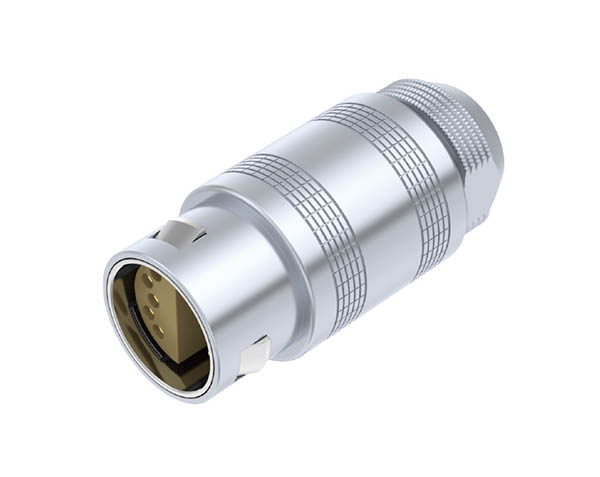

TFA series straight plug/with or without protective tail cover
