Main features

All models in this series are waterproof when plugged in and can achieve a waterproof rating of IP68 (at least IP66) when correctly assembled with compatible cables; This series of connectors is mainly designed for outdoor applications.

● Safe and fast plug-in self-locking system

● The wiring methods include soldering and printed board pin cores (straight or bent pins) to choose from

● Available in both straight and 90 ° angled versions

● Half moon plug-in core is equipped with both male and female pin cores, with polarity positioning

● 360 ° all-round shielding effect, anti electromagnetic interference

● Multi core type 2~10 cores

● High density installation, saving space

● Waterproof connection (IP68/IP66)

Technical Specifications

Insertion and extraction times:>5000 times

Humidity: up to 95% at a temperature of 60 ℃

Temperature range: -40 ℃~150 ℃ (vacuum water tight type -40 ℃~125 ℃) Vibration: 10~2000Hz, 15g

Mechanical impact: 100g · 6ms

Salt spray test: 48 hours

Protection level: IP68 (plugged in state)

Shielding effect:>75dB at 10MHz;>40dB at 1MHz

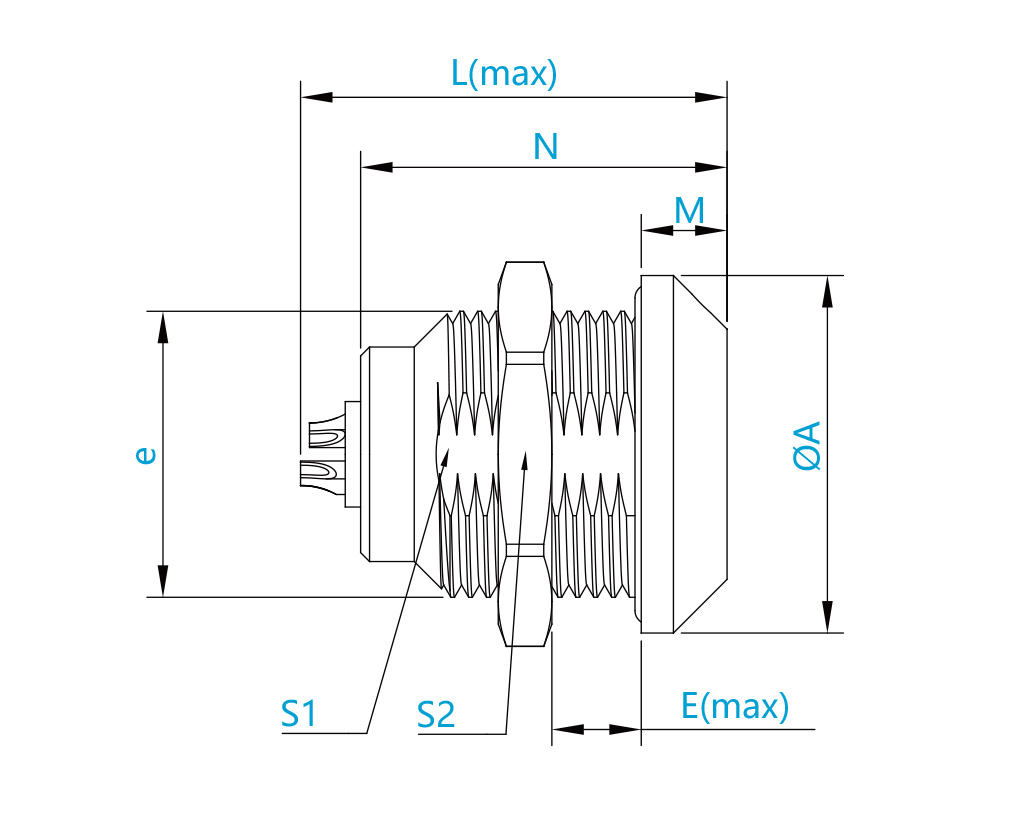

ZRA series fixed socket/nut fixing/rear lock installation
