Main features
● Secure and rapid plug-in and pull-out self-locking system
● Wiring methods include soldering and printed circuit board pin cores (straight or bent pins) for selection
● The half-moon insert comes with both male and female pin cores, featuring polarity positioning
● Comprehensive shielding effect, resistant to electromagnetic interference
● Multicore type 2~10 cores
● High-density installation, space-saving
Technical Specifications
Insertion and extraction cycles: >3000 times
Humidity: Up to 95% at 60°C
Temperature range: -40°C to +150°C (vacuum watertight type: -40°C to 125°C)
Vibration: 10 to 2000 Hz, 15g
Mechanical impact: 100g, 6ms
Salt spray test: 48 hours
Protection Rating: Deep Water IP50
Shielding effectiveness: >75dB at 10MHz; >40dB at 1MHz

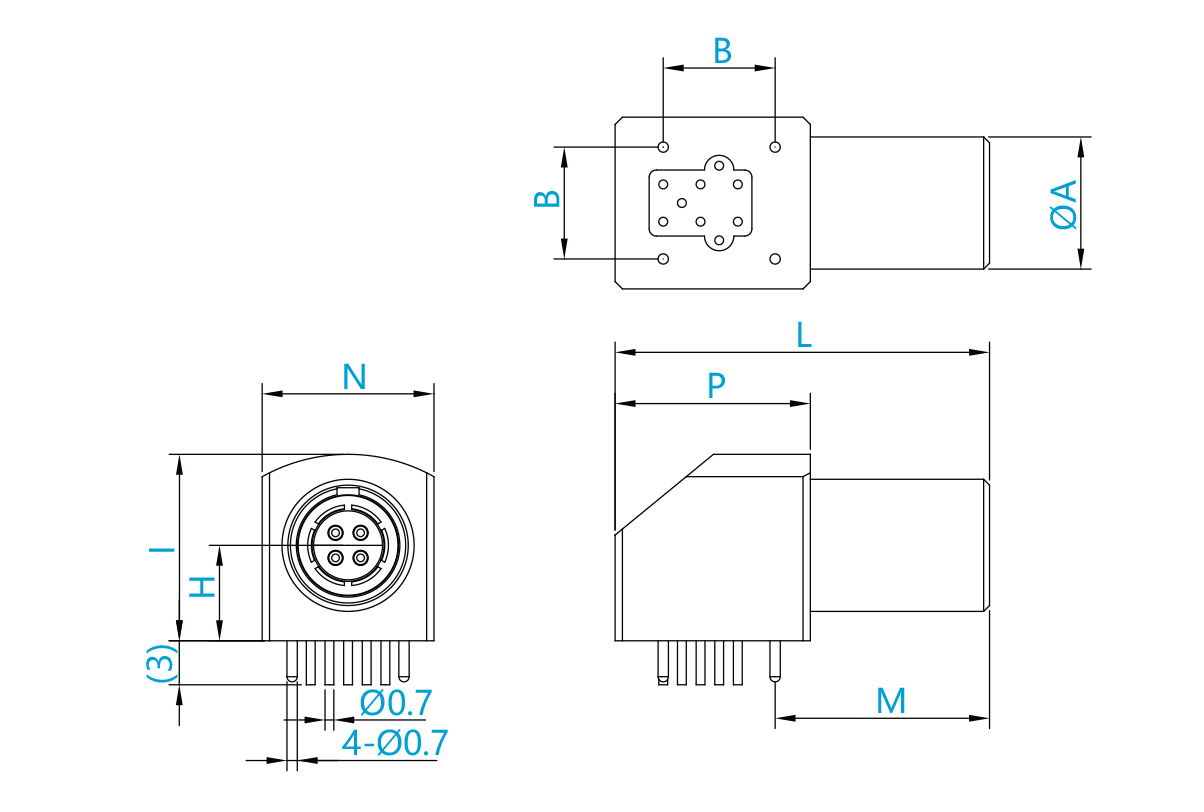

The ZPL series is suitable for 90 ° curved sockets/soldering fixation on printed circuit boards
| Number | External dimensions of connector (mm) |
| Model | Shell number | A
| B | H | I | L | M | N | P |
| ZPL | 0S | 9 | 7.62 | 6.7 | 12.7
| 25.5
| 14.6 | 11.7
| 13.3 |
1S
| 11 | 7.62 | 7.5 | 14.2 | 27 | 16.6
| 12.6 | 13.3 |
