Main features
● Secure and rapid plug-in and pull-out self-locking system
● Wiring methods include soldering and printed circuit board pin cores (straight or bent pins) for selection
● The half-moon insert comes with both male and female pin cores, featuring polarity positioning
● Comprehensive shielding effect, resistant to electromagnetic interference
● Multicore type 2~10 cores
● High-density installation, space-saving
Technical Specifications
Insertion and extraction cycles: >3000 times
Humidity: Up to 95% at 60°C
Temperature range: -40°C to +150°C (vacuum watertight type: -40°C to 125°C)
Vibration: 10 to 2000 Hz, 15g
Mechanical impact: 100g, 6ms
Salt spray test: 48 hours
Protection Rating: Deep Water IP50
Shielding effectiveness: >75dB at 10MHz; >40dB at 1MHz

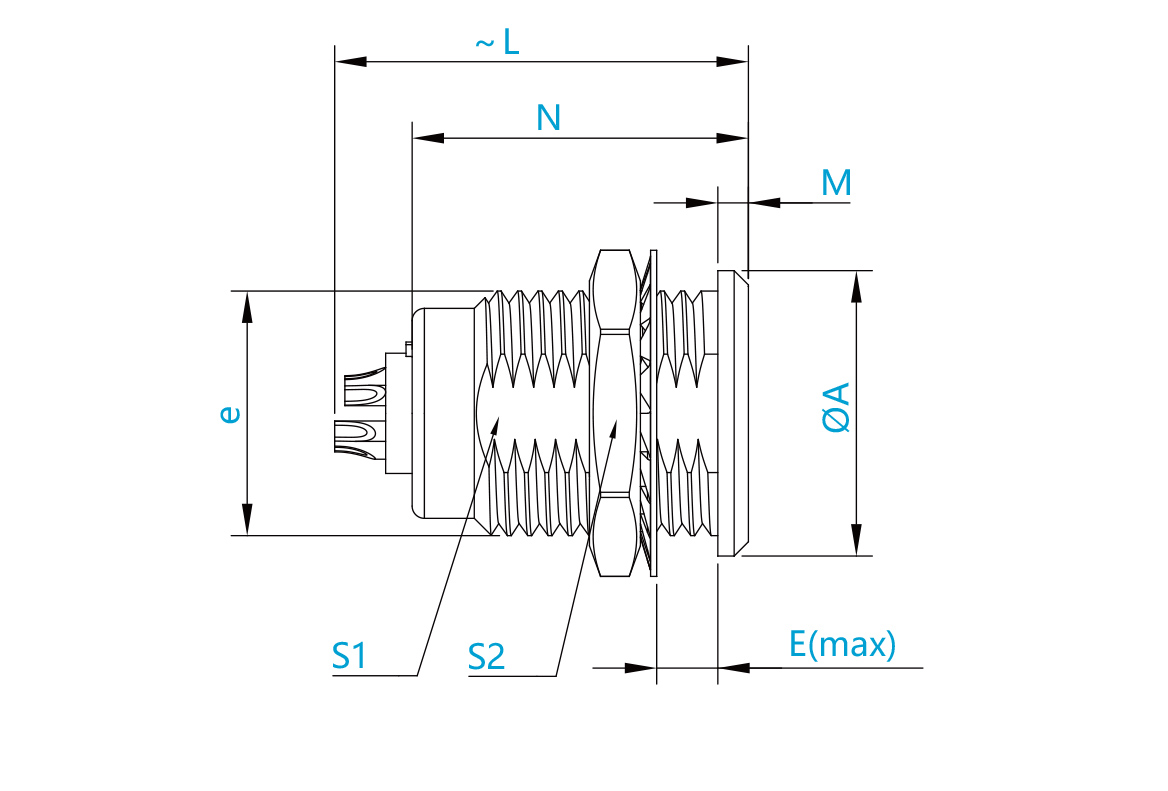

ZRA series fixed socket/nut fixing/rear lock
| Number | External dimensions of connector (mm) |
| Model | Shell number | A
| e | E | L | M | N | S1 | S2 |
| ZRA | 00 | 8 | M7x0.5 | 6 | 16
| 1 | 12
| 6.3 | 9 |
0S
| 10 | M9x0.6 | 7 | 18.5 | 1.2
| 14.5 | 8.2 | 11
|
| 1S | 14 | M12x1.0 | 7.5 | 21 | 1.5 | 16.5 | 10.5 | 14 |
| 2S | 18 | M15x1.0 | 8.5 | 26 | 2 | 18 | 13.5 | 17 |
