Main features
● Secure and rapid plug-in and pull-out self-locking system
● Wiring methods include soldering and printed circuit board pin cores (straight or bent pins) for selection
● The half-moon insert comes with both male and female pin cores, featuring polarity positioning
● Comprehensive shielding effect, resistant to electromagnetic interference
● Multicore type 2~10 cores
● High-density installation, space-saving
Technical Specifications
Insertion and extraction cycles: >3000 times
Humidity: Up to 95% at 60°C
Temperature range: -40°C to +150°C (vacuum watertight type: -40°C to 125°C)
Vibration: 10 to 2000 Hz, 15g
Mechanical impact: 100g, 6ms
Salt spray test: 48 hours
Protection Rating: Deep Water IP50
Shielding effectiveness: >75dB at 10MHz; >40dB at 1MHz

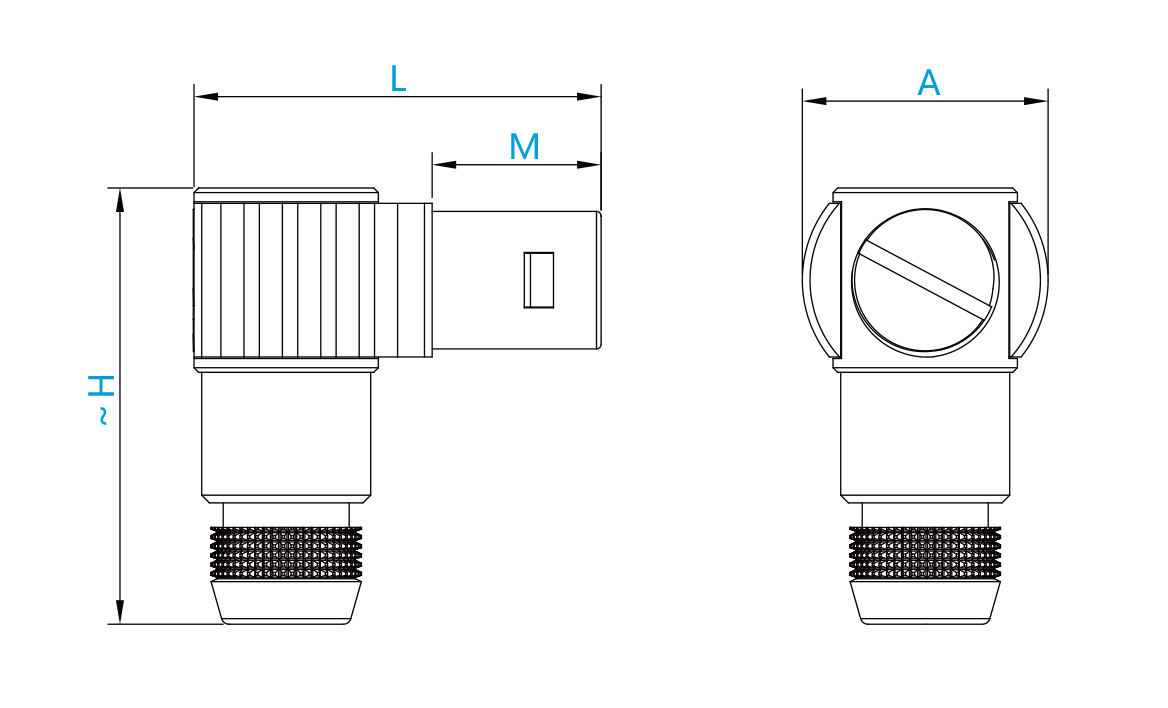

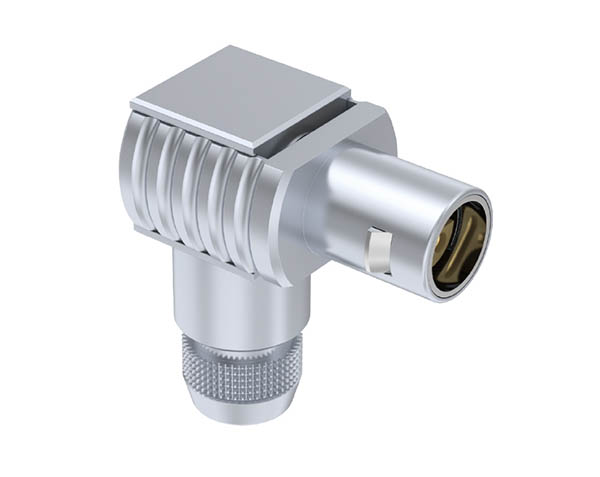

TLA series 90 ° curved plug/cable clamp
| Number | External dimensions of connector (mm) | Cable outer diameter Ø (mm) |
| Model | Shell number | A
| H | L | M | Min | Max |
| TLA | 00 | 9 | 16 | 17.5
| 8 | 1.3 | 3.1 |
0S
| 13 | 25 | 23 | 10
| 1.3 | 4.5 |
| 1S | 16 | 28.5 | 26.5 | 11 | 3.2 | 6.2 |
| 2S | 20.5 | 27 | 26.5 | 12 | 3.2 | 8.2 |
