Main features
● Safe and reliable threaded connection system
● Positioning pin structure is used for connector alignment
● Multiple positioning pin options to avoid mixed insertion between similar connectors
● Comprehensive shielding effect, anti electromagnetic interference
● Multi core type 2~64 cores
● High density installation, saving space
Technical Specifications
Insertion and unplugging times:>1000 times
Humidity: up to 95% at a temperature of 60 ℃
Temperature range: -40 ℃~150 ℃
Vibration: 10-2000Hz, 15g
Mechanical impact: 100g · 6ms
Salt spray test: 48 hours
Protection level: Deep water IP68 (when plugged in and out)
Shielding effect:>75dB at 10MHz;>40dB at 1MHz

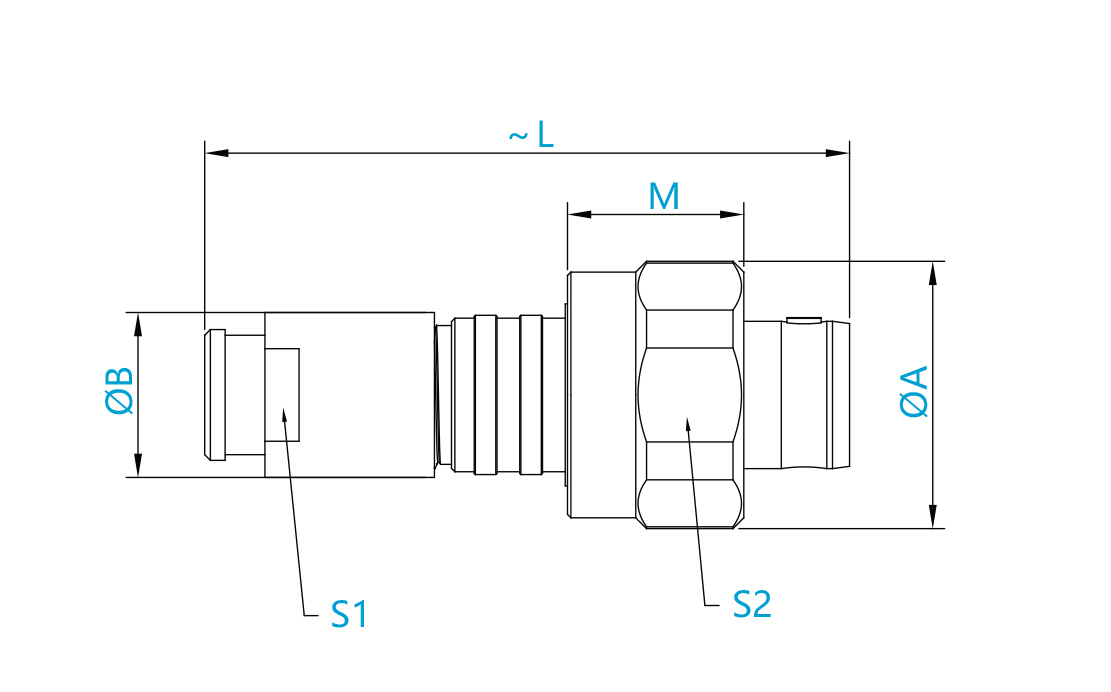

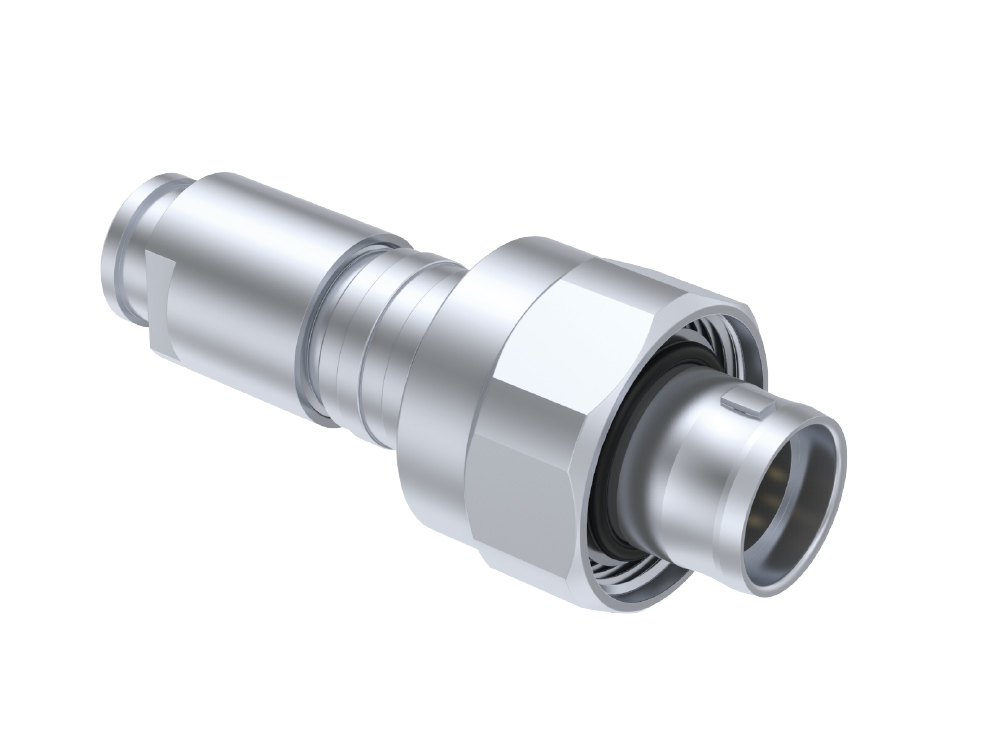

TVG series straight plug/positioning pin positioning/cable clamp/sheathed tail cover
| Number | External dimensions of connector (mm) | Cable outer diameter Ø (mm) |
| Model | Shell number | A
| B | L | M | S1 | S2 | Min | Max |
| TVG | 0W | 17.2 | 10.1 | 42 | 13.5
| 7.4 | 16 | 2.6 | 5 |
1W
| 19.3 | 11 | 46 | 14 | 9
| 18
| 3.6 | 6 |
| 2W | 23.5 | 14.5
| 57 | 15.5 | 12 | 22 | 3.6 | 9 |
