Main features

All models in this series are waterproof when connected and can function properly after correct assembly with compatible cables

Achieve an IP68 (minimum IP66) waterproof rating; this series of connectors is primarily designed for outdoor applications.

● Secure and rapid plug-and-lock system

● The wiring methods include soldering and printed board pin connections (straight or bent pins) as options

● Available in straight and 90° elbow styles

The positioning pin structure is used for connector alignment

● Multiple positioning pins available to prevent misinsertion between similar connectors

● 360° all-round shielding effect, resistant to electromagnetic interference

● Multi-core types 2~64 cores

● High-density installation, space-saving

● Waterproof connection (IP68)

Technical Specifications

Insertion and removal cycles: >5,000 times

Humidity: Up to 95% at a temperature of 60°C

Temperature range: -40℃~150℃ (vacuum watertight type: -40℃~125℃)

Vibration: 10~2000Hz, 15g

Mechanical shock: 100g.6ms

Salt spray test: 48 hours

Protection Class: IP68 (In Plugged State)

Shielding effectiveness: >75dB at 10MHz; >40dB at 1MHz

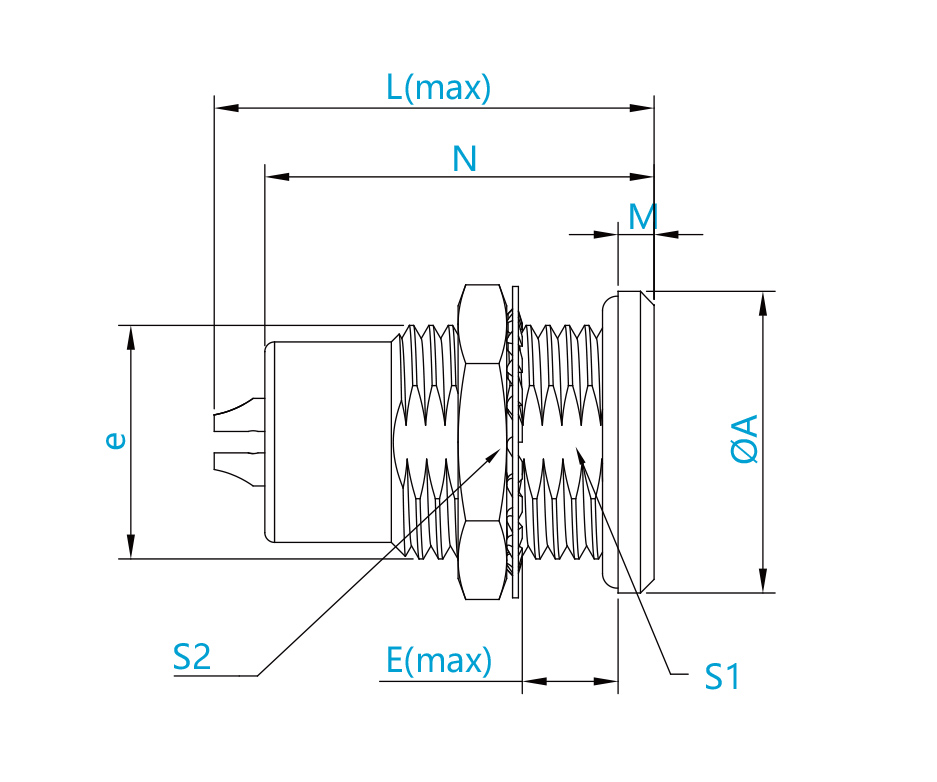

MGG series fixed socket/nut fixing/positioning pin positioning/rear lock installation/water tight or vacuum sealed
