Main features
All models in this series are waterproof when connected and can function properly after correct assembly with compatible cables
Achieve an IP68 (minimum IP66) waterproof rating; this series of connectors is primarily designed for outdoor applications.
● Secure and rapid plug-and-lock system
● The wiring methods include soldering and printed board pin connections (straight or bent pins) as options
● Available in straight and 90° elbow styles
The positioning pin structure is used for connector alignment
● Multiple positioning pins available to prevent misinsertion between similar connectors
● 360° all-round shielding effect, resistant to electromagnetic interference
● Multi-core types 2~64 cores
● High-density installation, space-saving
● Waterproof connection (IP68)
Technical Specifications
Insertion and removal cycles: >5,000 times
Humidity: Up to 95% at a temperature of 60°C
Temperature range: -40℃~150℃ (vacuum watertight type: -40℃~125℃)
Vibration: 10~2000Hz, 15g
Mechanical shock: 100g.6ms
Salt spray test: 48 hours
Protection Class: IP68 (In Plugged State)
Shielding effectiveness: >75dB at 10MHz; >40dB at 1MHz

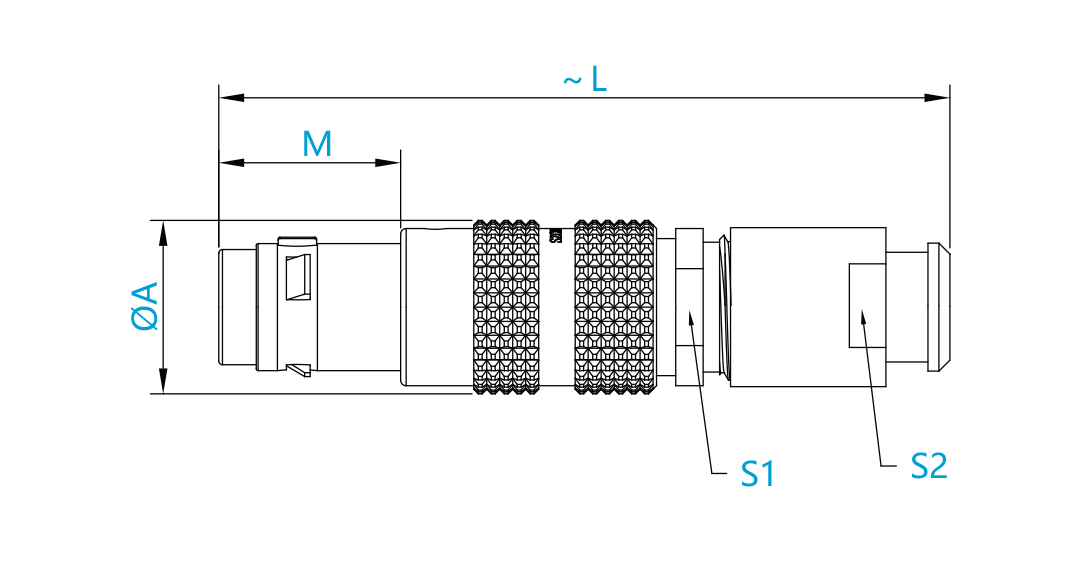

TGG series straight plug/positioning pin positioning/cable clamp/standard tail cover
| Number | External dimensions of connector (mm) | Cable outer diameter Ø (mm) |
| Model | Shell number | A
| L | M | S1 | S2 | Min | Max |
| TGG | 0T | 9.5 | 40.5 | 10 | 7.5 | 7.4 | 2.2 | 5 |
1T
| 12 | 46 | 11.3 | 11
| 9 | 2.5 | 6 |
| 2T | 15 | 58.5 | 11.9 | 14 | 12 | 3.6 | 9 |
3T
| 19 | 66.5 | 15 | 16 | 15 | 4.6 | 11 |
